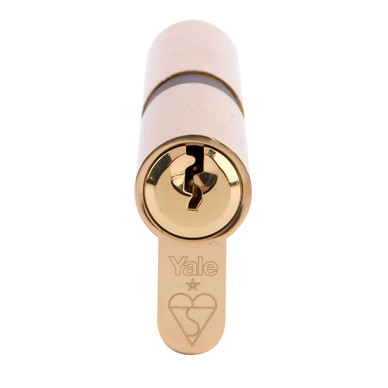

Yale 1 Star 6 Pin Double Euro Cylinder 35-10-45mm Brass

By Yale Product code: 93670 Pack size: Each

£17.48 Exc. VAT £14.57

Product Details

• BSI Kitemark approved replacement cylinder
• High security level - Secured by Design approved

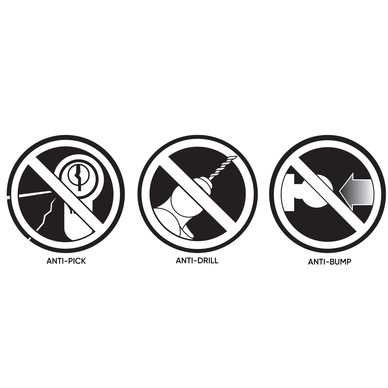

• Anti-pick, anti-drill and anti-bump resistant

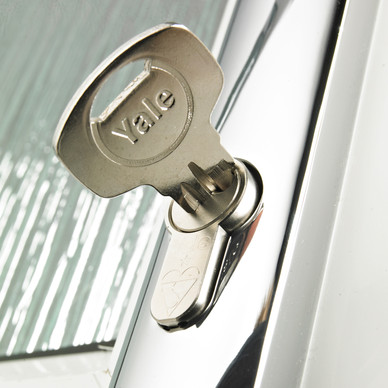

• Supplied with three keys

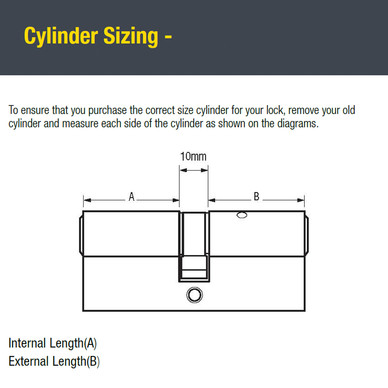

• Sizes are overall lengths - first measurement is the internal side

The Yale KM Euro Profile cylinder has been developed to provide protection against common cylinder attack methods. The KM series offers British Kitemarked TS007:2014 1 Star security and has been tested to the British Standard BS EN 1303:2005. Provides 3 Star rated protection when fitted with a 2 Star PVCu handle.

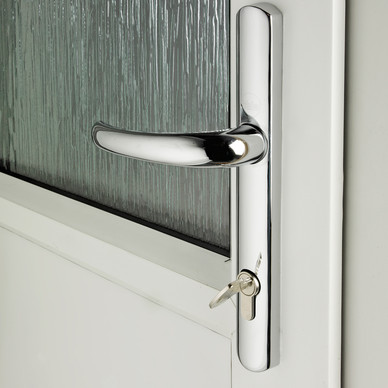

Suitable as a replacement product on PVCu, wood and composite doors, this cylinder is Secured by Design approved and is recommended for use where a high level of security and attack protection is required.

It is anti-drill, anti-pick and anti-bump resistant and comes with a 10 year manufacturer's mechanical guarantee.

Available in double and thumbturn variants, and polished brass and nickel plated finishes.

Technical Specification
Brand Yale
Colour Gold
Material Brass
Manufacturer ID KM3545-PB
Type 6 Pin
Delivery details

DELIVERY OPTIONS (UK mainland only)

Next Day Delivery – £5.00 or FREE for orders over £25

  • Order before 9pm Monday to Thursday for next business day delivery
  • Order Friday to Sunday before 6pm for Monday delivery
  • Orders placed after Sunday at 6pm will be delivered the following Tuesday

Pre-12pm Delivery – £10.00 or £5.00 for orders over £25, to arrive before 12pm on the scheduled days above

Saturday Delivery – £10.00 or £5.00 for orders over £25 & FREE for orders over £75 (order by 6pm Friday)

Sunday delivery – £10.00 or £5.00 for orders over £25 & FREE for orders over £75 (order by 4pm Saturday)

Times may vary for items being delivered directly from the supplier. For more information, please visit our delivery information page

Items over 30kg can only be delivered next Business Day Mon-Fri, if ordered before 6pm. Orders placed after 9pm Thursday will be delivered the following Monday

More about Delivery & Returns
Click & Collect details

Collection Details

We are fully open and delighted to welcome our customers into our branches. Our opening times are 7am-8pm Monday-Friday, 7am-7pm Saturday and 9-4pm Sunday

We advise that you check your local branch is open on the branch locator page, before you visit.

Once you have placed your order online, we’ll have it ready for you at the branch you have selected in as little as 5 minutes. We will hold your order for 14 days, after which we will automatically generate a refund to the payment type you used to place the order.

Please wait for your text or email before coming to collect it and be aware that we will still have health & safety measures in place, so we ask that you observe the branch guidelines.

Don’t forget your mobile number – Please ensure that your mobile number is added so that we can text you when your order is ready to collect.

Yale 1 Star 6 Pin Double Euro Cylinder 35-10-45mm Brass is rated 4.6 out of 5 by 103.
Rated 5 out of 5 by from Perfect Yale Replacement Cylinder. Identified the type/size of Yale Cylinder I required, bought it, collected it fitted it, all within an hour. Fantastic. Operates perfectly.
Date published: 2021-11-17
Rated 1 out of 5 by from Broke when bought. Found out lock was broke when i got home, could see packaging had already been opened. Looks like someone had previously took it back. What a waste of journey given it was collection. 2nd time ive bought something from toolstation that was already faulty and appears to have been previously been taken back by another customer.
Date published: 2021-11-10
Rated 5 out of 5 by from Excellent Lock Firstly I'm sure all you professionals out there know how many size combinations there are on these locks. For DIYers it's really important to measure each side of the existing lock to get a matching unit. This was to replace a broken lock in a pair of patio doors. I felt it was worth spending the extra to get a good quality well known brand of lock and that certainly proved to be right. You can see by the difference in key size that this is a 6 pin lock. Once you know how, fitting is very straight forward. Really excellent buy and as usual top rate service from Toolstation staff. Thank you!
Date published: 2021-10-30
Rated 5 out of 5 by from Replacement lock for frony door Bought this lock worked perfect took 5mins to take out old and replace with one. Was to buy ERA brand but decided to Yale, key goes in very smoothly and turns without any sticking. I would reccomend if you need a replacement buy this one.......
Date published: 2021-10-29
Rated 3 out of 5 by from Cylinder lock Product very good, however packing is ver poor - cardboard, easily opened...
Date published: 2021-10-25
Rated 5 out of 5 by from Universal lock Great lock, easy to fit. A quality merchandise
Date published: 2021-10-20
Rated 5 out of 5 by from The best Very easy to fit and a name you can trust at a very good price
Date published: 2021-10-12
Rated 5 out of 5 by from Spot on Worked perfectly when a cheaper alternative was a bit sticky.
Date published: 2021-10-09
