Ximax Oxford Duo Horizontal Designer Radiator 445 x 600mm 1560Btu White

By Ximax Product code: 83781 Pack size: Each

£201.38 Exc. VAT £167.82

Product Details

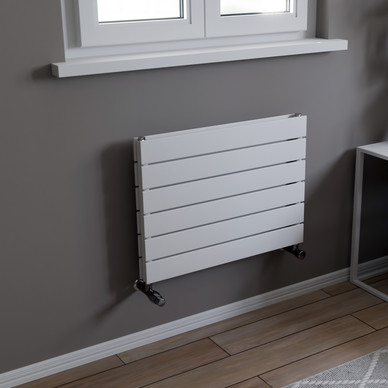

Looking to fit a modern and sharp-looking horizontal radiator? This Ximax designer radiator has a stylish, neutral design that will make itself at home in all kinds of living spaces, from bathrooms and kitchens to bedrooms and office spaces. It's easy to install and is designed to fit together with hot water central heating systems. It also comes with a 10-year manufacturer's guarantee.

The Ximax radiator is made of steel that's been given a high-quality pre-treatment, as well as a powder-coated finish to make sure it looks the part and functions properly long after it's been installed. It has a heat output calculated at Delta T 50°C, which means it will generate a comfortable +20°C room temperature. It's ready to install out of the box as it comes with a plug, a vent and wall fixings. This product is manufactured and tested to EN-442 European standards for radiators, so it's guaranteed to be safe and reliable.

• Stylish designer radiator with modern panel design in duo version

• Steel construction with high quality pre-treatment and powder-coated finish

• Suitable for hot water central heating systems

• Easy to install with wall fixings, plug and vent included

• Maximum working temperature of 120°C

• Heat output calculated at Delta T50°C

• Pressure tested to 5.2 bar, max working pressure 4 bar

• Connection size: 1/2"

• Projection from wall: 90mm

• Wall to centre: 60mm

• Manufactured and tested to EN-442

• Dimensions are height x width

• 10-year manufacturer's guarantee (T&Cs apply)

Technical Specification
Brand Ximax
Colour White
Width (mm) 600
Height (mm) 445
Material Steel
Manufacturer ID TPHD445600W
BTU 1560
Width (mm) 600
Warranty (years) 10
Certification Manufactured and tested to EN-442
Depth (mm) 75
Min Pressure (bar) 0.5
Max Pressure (bar) 4
Finish Gloss
Weight (kg) 12.09
User Guide click here
Pack Contents Radiator, fixings, blank and air plug
Pipe Centres (mm) 600mm
Fitted Depth (mm) 90
BTU Range 1001-2000
Inlet Connection 1/2"
Max. Hot Water Temp 120°C
Range Name Oxford
Coating Powder Coated
Delta T 50
Suitable Systems Central Heating
Radiator Profile Double
Number of Sections 6
Radiator Orientation Horizontal
Radiator Style Flat Panel
