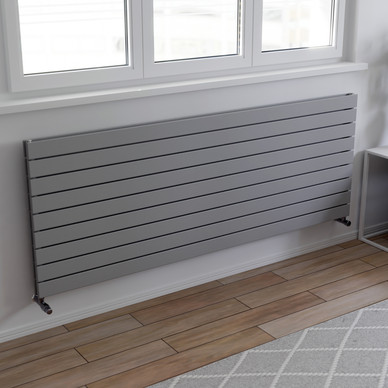

Ximax Oxford Duo Horizontal Designer Radiator 670 x 1800mm 6502Btu Silver

By Ximax Product code: 70568 Pack size: Each

£439.98 Exc. VAT £366.65
Selected
Quantity

Product Details

• Steel construction with high quality pre-treatment and powder-coated finish.
• Easy to install
• Wall fixings, plug & vent included
• Connection size: 1/2"
• Heat output calculated at Delta T50°C
• Pressure tested to 5,2 bar, max working pressure 4 bar
• Max. working temperature : 120°C
• Manufactured and tested to EN-442
• Projection from wall: 90 mm and wall to centre: 60mm

Stylish designer radiator with modern panel design in duo version. 10 year manufacturer's guarantee (T&Cs Apply). Suitable for hot water central heating systems.

Technical Specification
Brand Ximax
Colour Silver
Width (mm) 1800
Height (mm) 670
Material Steel
Manufacturer ID TPHD6701800S
BTU 6502
Width (mm) 1800
Warranty (years) 10
Certification Manufactured and tested to EN-442
Depth (mm) 75
Min Pressure (bar) 0.5
Max Pressure (bar) 4
Finish Gloss
Weight (kg) 50.31
User Guide click here
Pack Contents Radiator, fixings, blank and air plug
Fitted Depth (mm) 90
BTU Range 6001-8000
Inlet Connection 1/2"
Max. Hot Water Temp 120°C
Range Name Oxford
Coating Powder Coated
Delta T 50
Suitable Systems Central Heating
Radiator Profile Double
Number of Sections 9
Radiator Orientation Horizontal
Radiator Style Flat Panel
