Product Details

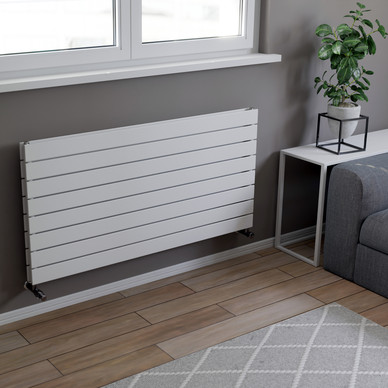

Looking to fit a modern and sharp-looking horizontal radiator? This Ximax designer radiator has a stylish, neutral design that will make itself at home in all kinds of living spaces, from bathrooms and kitchens to bedrooms and office spaces. It's easy to install and is designed to fit together with hot water central heating systems. It also comes with a 10-year manufacturer's guarantee.
The Ximax radiator is made of steel that's been given a high-quality pre-treatment, as well as a powder-coated finish to make sure it looks the part and functions properly long after it's been installed. It has a heat output calculated at Delta T 50°C, which means it will generate a comfortable +20°C room temperature. It's ready to install out of the box as it comes with a plug, a vent and wall fixings. This product is manufactured and tested to EN-442 European standards for radiators, so it's guaranteed to be safe and reliable.
• Stylish designer radiator with modern panel design in duo version
• Steel construction with high quality pre-treatment and powder-coated finish
• Suitable for hot water central heating systems
• Easy to install with wall fixings, plug and vent included
• Maximum working temperature of 120°C
• Heat output calculated at Delta T50°C
• Pressure tested to 5.2 bar, max working pressure 4 bar
• Connection size: 1/2"
• Projection from wall: 90mm
• Wall to centre: 60mm
• Manufactured and tested to EN-442
• Dimensions are height x width
• 10-year manufacturer's guarantee (T&Cs apply)
Technical Specification | Brand | Ximax |
| Colour | White |
| Width (mm) | 1200 |
| Height (mm) | 595 |
| Material | Steel |
| Manufacturer ID | TPHD5951200W |
| BTU | 3949 |
| Width (mm) | 1200 |
| Warranty (years) | 10 |
| Certification | Manufactured and tested to EN-442 |
| Depth (mm) | 75 |
| Min Pressure (bar) | 0.5 |
| Max Pressure (bar) | 4 |
| Finish | Gloss |
| Weight (kg) | 30.35 |
| User Guide | click here |
| Pack Contents | Radiator, fixings, blank and air plug |
| Pipe Centres (mm) | 1200mm |
| Fitted Depth (mm) | 90 |
| BTU Range | 3001-4000 |
| Inlet Connection | 1/2" |
| Max. Hot Water Temp | 120°C |
| Range Name | Oxford |
| Coating | Powder Coated |
| Delta T | 50 |
| Suitable Systems | Central Heating |
| Radiator Profile | Double |
| Number of Sections | 8 |
| Radiator Orientation | Horizontal |
| Radiator Style | Flat Panel |
Reviews ★★★★★ ★★★★★
Ximax Oxford Duo Horizontal Designer Radiator 595 x 1200mm 3949Btu White is rated
4.6 out of
5 by
5.
Rated 5 out of
5
by
Cliff857 from
Nice good quality product.
Nice quality radiator.my plumber had no problems fitting this. Really like the horizontal bars, stops this looking like just another rad.
Date published: 2022-03-10
Rated 5 out of
5
by
Dan f home improvements from
Rubbish radiator
Appalling service. Waited 2 weeks with daily 1 hour waits to call center who couldn’t care less and were really rude. Nothing got sorted until I asked for a refund. Asked if I could track the delivery company but we’re told “they don’t talk to you” rubbish service Toolstation!!!!!!!!
Date published: 2021-10-31
Rated 4 out of
5
by
DIY Colin xx from
Don’t use the bolts provided.
The rad kicks out a massive amount of heat. Definitely need an adjustable valve.It looks very classy. The bolts provided to screw the brackets to the wall are total rubbish. I sheared two. I then had to move the brackets to relocate the holes. This could have consequences if you pipes are fixed.
Date published: 2021-09-19
Rated 4 out of
5
by
Orianne from
Great design / Awkward valves
Great design. Gets very very hot so perfect for cold rooms! Only down side is the valves come out at the bottom not the sides! So if you want to lay this vertical give yourself plenty of clearance.
Shame you can’t add pictures to the review so you could see.
Date published: 2021-04-10
Rated 5 out of
5
by
Vinny01 from
Good buy
A really good looking radiator it came fast (quicker than I though ) gives a good heat out would recommend
Date published: 2021-02-17
