Product Details

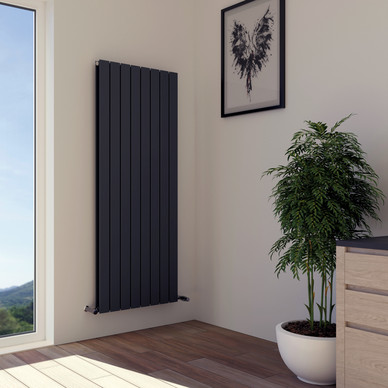

A radiator from the Ximax Oxford Duo collection does far more than just heat your home. It instantly becomes a focal point in the room – with its modern panel design, this tall designer radiator adds style and sophistication to the decor of any modern home.
Suitable for use with hot water heating systems, the radiator’s performance is just as impressive as its appearance. A high heat output will keep your room at the perfect temperature, and the powder-coated finish helps to radiate heat more effectively. It’s easy to install too, and comes with wall fixings, plug and vent included.
• Modern panel design will become a stylish feature of any room
• Suitable for hot water central heating systems
• Steel construction with high-quality pre-treatment for robust durability
• Powder-coated finish radiates heat from the surface more effectively
• Heat output calculated at Delta T50°C
• Pressure-tested to 5.2 bar, with a maximum working pressure of 4 bar
• Maximum working temperature: 120°C
• Projection from wall: 90mm
• Wall to centre: 60mm
• Connection size: 1/2"
• Easy to install with wall fixings, plug and vent included
• 10-year manufacturer's guarantee (T&Cs apply)
• Manufactured and tested to EN-442
Technical Specification | Brand | Ximax |
| Colour | Anthracite |
| Width (mm) | 595 |
| Height (mm) | 1500 |
| Material | Steel |
| Manufacturer ID | TPD1500595A |
| BTU | 5034 |
| Width (mm) | 595 |
| Warranty (years) | 10 |
| Certification | Manufactured and tested to EN-442 |
| Depth (mm) | 75 |
| Min Pressure (bar) | 0.5 |
| Max Pressure (bar) | 4 |
| Finish | Gloss |
| Weight (kg) | 37.64 |
| User Guide | click here |
| Pack Contents | Radiator, fixings, blank and air plug |
| Pipe Centres (mm) | 595mm |
| Fitted Depth (mm) | 90 |
| BTU Range | 4001-6000 |
| Inlet Connection | 1/2" |
| Max. Hot Water Temp | 120°C |
| Range Name | Oxford |
| Coating | Powder Coated |
| Delta T | 50 |
| Suitable Systems | Central Heating |
| Radiator Profile | Double |
| Number of Sections | 8 |
| Radiator Orientation | Vertical |
| Radiator Style | Flat Panel |
Reviews ★★★★★ ★★★★★
Ximax Oxford Duo Designer Radiator 1500 x 595mm 5034Btu Anthracite is rated
3.5 out of
5 by
6.
Rated 5 out of
5
by
Steve Bloy from
Good Product
Good product, I would recommend it. It puts out a good amount of heat and looks good. The profile is slim so it doesn't stick out much from the wall.
Date published: 2023-04-11
Rated 5 out of
5
by
Pinociho from
Grey radiator
Brilliant product enhance any room you put it into
Date published: 2023-03-21
Rated 4 out of
5
by
Bba007 from
Smart and stylish
Well made and looks great in the room
Very heavy product so make sure fittings are secure in the wall.
Date published: 2021-12-02
Rated 3 out of
5
by
Jimquad from
Damaged on arrival
Top right hand corner damaged. But otherwise seems ok.
Date published: 2021-04-27
Rated 3 out of
5
by
JohnnyB the builder from
Fitting a real pain but works ok
The welded receptor for the brackets are not placed that exact that you can carefully measure the drill holes first. Also if you only use one fixing as advised the weight of the rad turns the bracket. This is the first time I`ve fitted a vertical rad and it was very difficult to get it straight because the fixings are relatively close together compared to a horizontal one and adjusting it was very difficult due to the access, weight and uncertainty of which bracket is wrong. I fitted all four brackets first and it was a real nightmare.
So if you`re like me and want to see that bubble smack bang in the middle, here`s some real instructions from someone who`s actually fitted one!
1 use two screws in every bracket
2 fit one top one permanently
3 take your best guess and fit the other top one with one screw, try rad and adjust brkt (adjusting is sadly going in the side of the rawplug or elongating the hole with a file) and then fit second screw when you`re happy
4 then its fairly simple to measure for the bottom brackets making sure they are just a mm below taking weight or your bubble is all wrong again
Once fitted connections were all straightforward and it seems to work well and looks good
Date published: 2020-09-02
Rated 1 out of
5
by
DrNigel from
Looks stylish but not fit for purpose
Bought this to replace an older radiator for a kitchen revamp and to use in the vertical mode. From what I have now observed these rads. should not be sold for vertical use as shown in adverts, if there are more conventional rads. on the system. The reason being; is that each panel is only connected to the in/out tubes by tiny holes ~2-3mm. So, when plumbed in from the base the incoming hot water will take the path of least resistance. Possibly plumbing in diagonally (top/bottom) might work. Of course, if plumbed horizontally incoming water would have to rise & work across the panels to reach the outlet.
Date published: 2019-10-15
