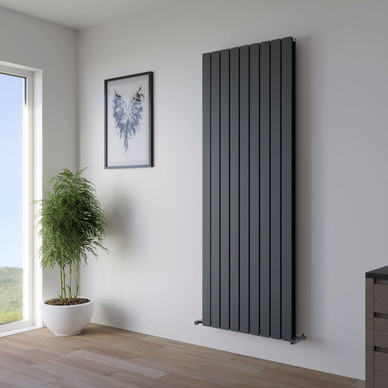

Ximax Oxford Duo Designer Radiator 1800 x 670mm 7133Btu Anthracite

By Ximax Product code: 21395 Pack size: Each

£389.98 Exc. VAT £324.98

Product Details

• Connection size: 1/2"
• Heat output calculated at Delta T50°C
• Pressure tested to 5.2 bar, maximum working pressure 4 bar
• Maximum working temperature: 120°C
• Manufactured and tested to EN-442
• Projection from wall: 90mm - Wall to centre: 60mm
Dimensions are height by width.

Stylish designer radiator with modern panel design duo version, suitable for hot water central heating systems. Steel construction with high quality pre-treatment and a powder-coated finish. Easy to install, with wall fixings, plug and vent included.
10 year manufacturer's guarantee (T&Cs apply).

Technical Specification
Brand Ximax
Colour by dominance Anthracite
Width (mm) 670
Height (mm) 1800
Material Steel
Manufacturer ID TPD1800670A
BTU 7133
Width (mm) 670
Warranty (years) 10
Certification Manufactured and tested to EN-442
Depth (mm) 75
Min Pressure (bar) 0.5
Max Pressure (bar) 4
Finish Gloss
Weight (kg) 50.31
Pack Contents Radiator, fixings, blank and air plug
Fitted Depth (mm) 90
BTU Range 6001-8000
Inlet Connection 1/2"
Max. Hot Water Temp 120°C
Range Name Oxford
Coating Powder Coated
Delta T 50
Suitable Systems Central Heating
Radiator Profile Double
Number of Sections 9
Radiator Orientation Vertical
Radiator Style Flat Panel
Delivery details

Covid-19 Update

  • FREE Next Business Day delivery is available for orders over £25 for orders placed before 9pm Mon-Thur and before 6pm Sunday
  • Saturday and Sunday delivery is available for orders placed before 6pm on Friday for Saturday Delivery and 4pm Saturday for Sunday delivery. Items over 30kg can only be delivered next Business Day Mon-Fri. Orders placed after 9pm Thursday will be delivered the following Monday see here for details
  • Pre-12 delivery service is now available for weekday deliveries. Place your order before 9pm Mon-Thur for next business day delivery by 12pm. Orders placed after 9pm Thur and before 6pm Sunday will be delivered by 12pm Monday. UK mainland only
  • Once your order has been dispatched you will receive an invoice email with the courier details and your tracking number
  • Alternatively go to MyAccount, click on your Order History, click on the TRACK icon to link through to the carrier website and the tracking details for your delivery
  • Delivery direct from suppliers is available and specific delivery times will be displayed on the product page
Order Value: Under £25 Over £25 but less than £75 £75 & Over
Next Business Day Mon-Fri (order by 9pm Mon-Thur & Sun by 6pm) delivered before 6pm £5 Free Free
Pre-12 Delivery Mon-Fri (order by 9pm Mon-Thur & Sun by 6pm) delivered before 12pm next day £10 £5 £5
Remote areas standard delivery (2-4 days) £5 Free Free
Saturday Delivery (order by 6pm Friday) delivered before 6pm £10 £5 Free
Sunday Delivery (order by 4pm Saturday) delivered before 6pm £10 £5 Free

Please note items delivered by our suppliers are not available for the options above. Delivery times may vary.

More about Delivery & Returns
Click & Collect details

Covid 19 Update

Click & Collect

We are fully open and delighted to welcome our customers into our branches.

Our opening times are 7am-8pm Monday-Friday, 7am-7pm Saturday and 9-4pm Sunday

Our speedy 5 min Click and Collect service remains one of the safest ways to buy from us and minimises your time in store. Place your order at toolstation.com 7 days a week, and travel to store once your collection confirmation is received by email or text message.

Don’t forget your mobile number – Please ensure that your mobile number is added so that we can text you when your order is ready to collect.

Your items will be held at your selected Toolstation branch for 14 days, after which point your order will be put back to stock and refunded automatically.

Ximax Oxford Duo Designer Radiator 1800 x 670mm 7133Btu Anthracite is rated 2.3 out of 5 by 3.
Rated 3 out of 5 by from Damaged on arrival Top right hand corner damaged. But otherwise seems ok.
Date published: 2021-04-27
Rated 3 out of 5 by from Fitting a real pain but works ok The welded receptor for the brackets are not placed that exact that you can carefully measure the drill holes first. Also if you only use one fixing as advised the weight of the rad turns the bracket. This is the first time I`ve fitted a vertical rad and it was very difficult to get it straight because the fixings are relatively close together compared to a horizontal one and adjusting it was very difficult due to the access, weight and uncertainty of which bracket is wrong. I fitted all four brackets first and it was a real nightmare. So if you`re like me and want to see that bubble smack bang in the middle, here`s some real instructions from someone who`s actually fitted one! 1 use two screws in every bracket 2 fit one top one permanently 3 take your best guess and fit the other top one with one screw, try rad and adjust brkt (adjusting is sadly going in the side of the rawplug or elongating the hole with a file) and then fit second screw when you`re happy 4 then its fairly simple to measure for the bottom brackets making sure they are just a mm below taking weight or your bubble is all wrong again Once fitted connections were all straightforward and it seems to work well and looks good
Date published: 2020-09-02
Rated 1 out of 5 by from Looks stylish but not fit for purpose Bought this to replace an older radiator for a kitchen revamp and to use in the vertical mode. From what I have now observed these rads. should not be sold for vertical use as shown in adverts, if there are more conventional rads. on the system. The reason being; is that each panel is only connected to the in/out tubes by tiny holes ~2-3mm. So, when plumbed in from the base the incoming hot water will take the path of least resistance. Possibly plumbing in diagonally (top/bottom) might work. Of course, if plumbed horizontally incoming water would have to rise & work across the panels to reach the outlet.
Date published: 2019-10-15
