Product Details
Take heating to new stylish levels with this Ximax designer radiator. You can use it in a kitchen, bathroom or living room to keep you toasty warm while maintaining a contemporary look. The radiator's ultra-modern design brings a touch of class to any room and lets you incorporate your home heating into your decor scheme. It's supplied with all the fittings you need as well as a plug, so it's ready to install.
This radiator projects just 92 mm from the wall for a neat finish that also ensures no one bangs into it. It's made from steel for ultimate strength and has a high-quality powder-coated finish for good protection. A matt veneer gives the radiator an understated yet sleek look.

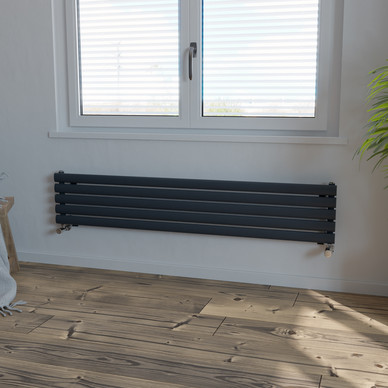

Don't worry about safety issues as this product meets European standards for central heating radiators so is safe to use in your home. It also comes with a 10-year warranty so you can rest assured that it's of a very high quality. This radiator is suitable for horizontal mounting and will look perfect under a window or wall shelf.
• Stylish designer radiator with modern oval design
• Steel construction with high quality pre-treatment and powder-coated finish
• Maximum working temperature of 120°C
• Heat output calculated at Delta T50
• Pressure tested to 13 bar, with a maximum working pressure of 10 bar
• Connection size: 1/2"
• Projection from wall: 92mm
• Wall to centre: 52mm
• Wall fixings, plug and vent included
• 10-year manufacturer's guarantee (T&Cs apply)
• Dimensions are height x width
• Manufactured and tested to EN 442
Technical Specification Brand | Ximax |
Colour | Anthracite |
Width (mm) | 1500 |
Height (mm) | 294 |
Material | Steel |
Manufacturer ID | TF2941500A |
BTU | 1689 |
Width (mm) | 1500 |
Warranty (years) | 10 |
Certification | Manufactured and tested to EN-442 |
Depth (mm) | 78 |
Min Pressure (bar) | 0.5 |
Max Pressure (bar) | 10 |
Finish | Matt |
Weight (kg) | 11.68 |
User Guide | click here |
Pack Contents | Radiator, fixings, blank and air plug |
Pipe Centres (mm) | 1500mm |
Fitted Depth (mm) | 92 |
BTU Range | 1001-2000 |
Inlet Connection | 1/2" |
Max. Hot Water Temp | 120°C |
Range Name | Bristol |
Coating | Powder Coated |
Delta T | 50 |
Suitable Systems | Central Heating |
Radiator Profile | Single |
Number of Sections | 5 |
Radiator Orientation | Horizontal |
Radiator Style | Oval Profile |
Reviews ★★★★★ ★★★★★
Ximax Bristol Single Horizontal Designer Radiator 294 x 1500mm 1689Btu Anthracite is rated
4.2 out of
5 by
5.
Rated 5 out of
5
by
Staveng from
Radiator purchase on line
Radiator arrived on time excellent tracking job well done tuffnell
Date published: 2022-04-16
Rated 4 out of
5
by
Jeth from
Difficult to fit
As the previous review stated, the radiator is difficult to to fit because of a missing fitting template. There is a general lack of instructions included in the packing or online. Consequently, fitting requires a little perseverance but the radiator itself is well made and adds a designer look to the bathroom at a very reasonable price.
Date published: 2021-07-04
Rated 2 out of
5
by
Katieev from
Lovely radiator the worst installation
It looks great, planned to be used in a bathroom horizontally. It was a disaster to install. My husband who fits and installs radiators etc had to work out how to fit it as the instructions were diabolical. There was no template for fitting, the one that was on the instructions didn’t match the radiator measurements so couldn’t be used. We had to make a cardboard template by lying the radiator down and marking where the brackets would go which is ridiculous. Would not buy again
Date published: 2021-03-13
