Ximax Bristol Open Single Panel Towel Radiator 1164 x 600mm 2222Btu White

By Ximax Product code: 77346 Pack size: Each

£224.98 Exc. VAT £187.48
Selected
Quantity

Product Details

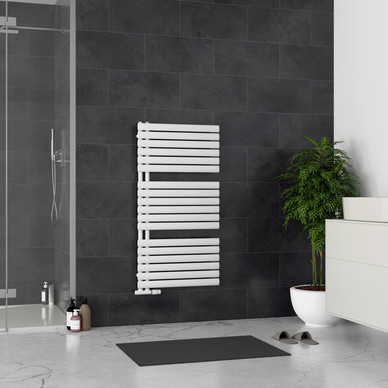

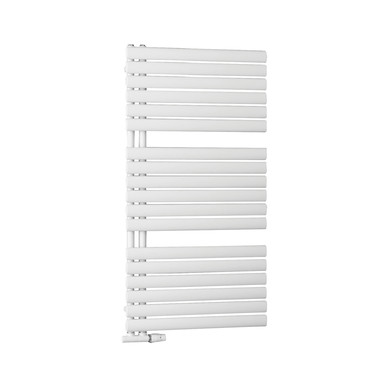

This towel radiator is built to a stylish modern design, with 18 horizontal oval bars protruding from a double upright on the left-hand side. This makes it easy to slide towels on and off from the side. It's constructed from high-quality steel, while a smart powder-coated finish provides a semi-gloss effect and helps it stand up to corrosion in the moist environment of a bathroom.

The towel radiator is suitable for use with a central heating system and can be used with hot water up to a maximum temperature of 120°C. Its operating pressure range is 0.5 to 10 bar and water is supplied through a 1/2" inlet connection. Its heat output is calculated at Delta T50, the European testing standard for modern boilers, which makes it easy to calculate whether it will heat your size of living space efficiently. It's easy to install using the supplied wall fixings and vent.

• Stylish designer towel radiator with a modern oval design

• Steel construction with a high quality pre-treatment and powder-coated finish

• Suitable for hot water central heating systems

• Pressure tested to 13 bar, with a maximum working pressure of 10 bar

• Maximum working temperature of 120°C

• Heat outputs to Delta T50

• Projection from wall: 100 mm

• Wall to centre: 60 mm

• Wall fixings, plug and vent included

• Manufactured and tested to EN 442

Technical Specification
Brand Ximax
Colour White
Width (mm) 600
Height (mm) 1164
Material Steel
Manufacturer ID TBO1164600W
BTU 2222
Width (mm) 600
Warranty (years) 10
Certification Manufactured and tested to EN-442
Depth (mm) 70
Min Pressure (bar) 0.5
Max Pressure (bar) 10
Finish Semi Gloss
Weight (kg) 17.12
User Guide click here
Pack Contents Radiator, fixings, blank and air plug
Fitted Depth (mm) 100
BTU Range 2001-3000
Inlet Connection 1/2"
Max. Hot Water Temp 120°C
Range Name Bristol
Coating Powder Coated
Delta T 50
Suitable Systems Central Heating
Radiator Profile Single
Number of Sections 18
Radiator Orientation Vertical
Radiator Style Oval Profile
