Ximax Bristol Double Horizontal Designer Radiator 410 x 1800mm 4573Btu Anthracite

By Ximax Product code: 41608 Pack size: Each

£372.98 Exc. VAT £310.82

Product Details

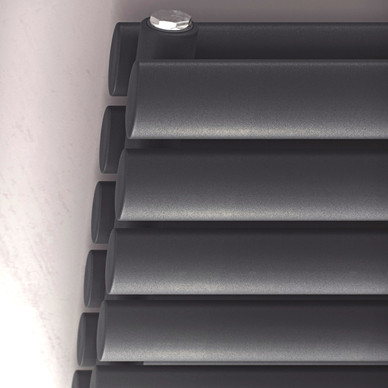

This designer radiator from Ximax has a stylish modern look with seven horizontal oval bars. It's constructed from high-quality steel and finished with a powder coating that creates a smart gloss effect and helps it to resist corrosion.

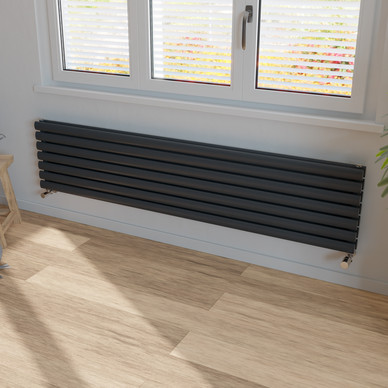

The radiator's compact dimensions make it a good choice for fitting into a small space such as underneath a window. It's suitable for use with hot water central heating systems. The radiator can be used at pressures between 0.5 bar and 10 bar, and with hot water up to a maximum temperature of 120°C, for those really cold winter nights.

Its heat output is calculated at Delta T50, the European testing standard for modern boilers, which makes it easy to calculate whether it will heat your living space efficiently. It's simple to install using the supplied wall fixings and vent, and the water comes through a 1/2" inlet connection.

• Stylish designer radiator with modern oval design

• Steel construction with high quality pre-treatment and powder-coated finish

• Easy to install with wall fixings, plug and vent included

• Maximum working temperature of 120°C

• Heat output calculated at Delta T50

• Pressure tested to 13 bar with a maximum working pressure of 10 bar

• Connection size: 1/2"

• Projection from wall: 102 mm

• Wall to centre: 62 mm

• Radiator dimensions are height x width

• 10-year manufacturer's guarantee (T&Cs apply)

• Manufactured and tested to EN-442

Technical Specification
Brand Ximax
Colour Anthracite
Width (mm) 1800
Height (mm) 410
Material Steel
Manufacturer ID TFD4101800A
BTU 4573
Width (mm) 1800
Warranty (years) 10
Certification Manufactured and tested to EN-442
Depth (mm) 92
Min Pressure (bar) 0.5
Max Pressure (bar) 10
Finish Matt
Weight (kg) 33.77
User Guide click here
Pack Contents Radiator, fixings, blank and air plug
Pipe Centres (mm) 1800mm
Fitted Depth (mm) 102
BTU Range 4001-6000
Inlet Connection 1/2"
Max. Hot Water Temp 120°C
Range Name Bristol
Coating Powder Coated
Delta T 50
Suitable Systems Central Heating
Radiator Profile Double
Number of Sections 7
Radiator Orientation Horizontal
Radiator Style Oval Profile
Ximax Bristol Double Horizontal Designer Radiator 410 x 1800mm 4573Btu Anthracite is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from More than just another radiator Really nice radiator, something a bit special for a room. Plumber fitted it well, no complaints.
Date published: 2022-03-10
