Ximax Bristol Designer Radiator 600 x 1164mm 4573Btu Double White

By Ximax Product code: 74329 Pack size: Each

£421.98 Exc. VAT £351.65

Product Details

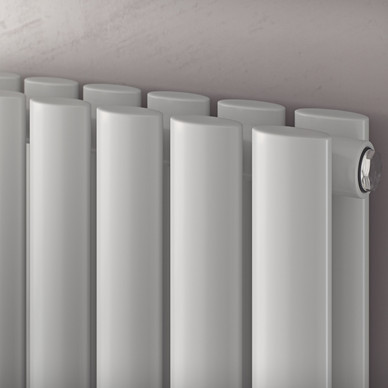

This radiator from Ximax is built to a particularly stylish modern design with 10 vertical bars that have an oval profile. It's constructed from high-quality steel and a powder coating gives it a smart, corrosion-resistant semi-gloss finish.

Its compact dimensions mean it will fit neatly into a small space such as underneath a window. And you shouldn't face any issues getting it up and running as the supplied wall fixings, vent and plug make it very easy to install.

This radiator is suitable for use with hot water central heating systems. It can be used with hot water up to a maximum temperature of 120°C, meaning that it will give out enough heat to warm the coldest of nights. The operating pressure range is 0.5 bar to 10 bar.

Its heat output is calculated at Delta T50, the European testing standard for modern boilers, which makes it easy to calculate the heat output of the radiator and figure out whether it will provide efficient heating for your living space. The water is supplied through a 1/2" inlet connection.

• Stylish designer radiator with modern oval design

• Steel construction with high quality pre-treatment and powder-coated finish

• Easy to install with wall fixings, plug and vent included

• Pressure tested to 13 bar, with a maximum working pressure of 10 bar

• Maximum working temperature of 120°C

• Heat output calculated at Delta T50

• Connection size: 1/2"

• Projection from wall: 102mm

• Wall to centre: 62mm

• 10-year manufacturer's guarantee (T&Cs apply)

• Manufactured and tested to EN 442

Technical Specification
Brand Ximax
Colour White
Width (mm) 1164
Height (mm) 600
Material Steel
Manufacturer ID TFD6001164W
BTU 4573
Width (mm) 1164
Warranty (years) 10
Certification Manufactured and tested to EN-442
Depth (mm) 92
Min Pressure (bar) 0.5
Max Pressure (bar) 10
Finish Gloss
Weight (kg) 33.88
User Guide click here
Pack Contents Radiator, fixings, blank and air plug
Pipe Centres (mm) 1164mm
Fitted Depth (mm) 102
BTU Range 4001-6000
Inlet Connection 1/2"
Max. Hot Water Temp 120°C
Range Name Bristol
Coating Powder Coated
Delta T 50
Suitable Systems Central Heating
Radiator Profile Double
Number of Sections 20
Radiator Orientation Vertical
Radiator Style Oval Profile
