Warmup VLo Econna Underfloor Heating Pack 16.0m2

by Warmup Product Code: 70205

Warmup

Pack size: Each

(0)
£1865.98 ex. VAT £1554.98

4 Available for delivery. This item will be delivered directly by our supplier within 2-3 business days.

More info
paypal credit logo

0% interest for 4 months on orders above £99*. Learn more


Related Products

Product Details

The VLo Econna-12 Joisted Floor System is an optimised hydronic heating system to install with battened or joisted floors.

Warmup’s VLo Econna-12 is an upgrade of our classic Econna Joisted Floor System. It has been specifically designed for use over both battened and joisted floors, leaving the void between them free for insulation material and other services. Its low-profile design makes it the perfect choice to bring radiant warmth to period home renovation projects.

The Econna-12’s energy-saving technology can offer significant savings on your energy bills, and it can be used with a traditional boiler or heat pump. The updated design has resulted in an even more efficient heating system that offers value for money and quick installation times.

The VLo Econna-12 Joisted Floor System allows quick installation times due to its dry, screedless installation method and one-piece panel design. The slimline 22mm thick panels with a built-in layer of diffusion foil facilitate an even heat distribution, ensuring no hot or cold spots.

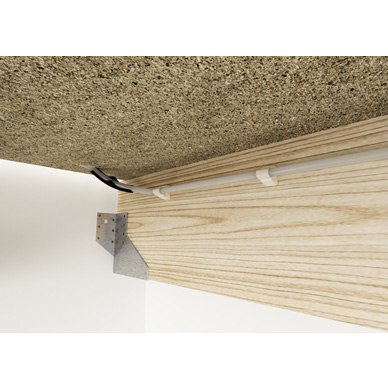

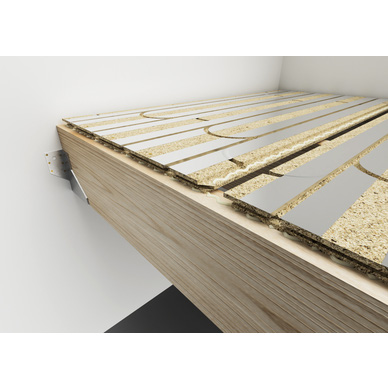

The Econna-12’s low-profile design uses a 12mm heating pipe which is built into the structural floor, making sure there will be no overheating of the floor finish. Its 22mm chipboard panels can be installed over battens or joists with spacings of up to 600mm centres and feature a fluted exit to ensure an easy transition into the neighbouring panel. With no screeding required, the universal panels hold the heating pipe in the optimal position; simply glue and screw down the boards, place the pipes within the grooves and then apply a 6mm ply on top prior to fitting the floor finish.

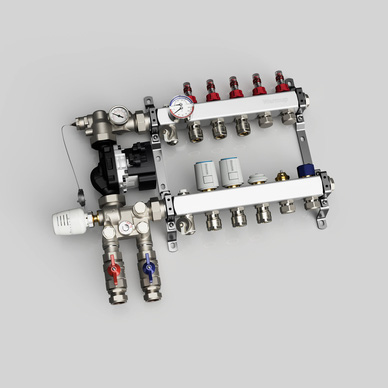

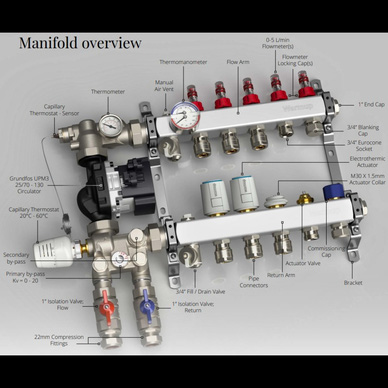

Warmup’s Manifold is responsible for circulating heated water from the heat source through the connected floor heating pipework whilst managing water pressure, flow-rates and temperature regulation.

The Warmup Manifold is constructed from 304-graded stainless steel and is available in a range of sizes and configurations; providing control for up to 12 heat zones. It is suitable for use with all Warmup water systems in both new-build and renovation projects.

Available in 4 pack sizes to suit different floor area requirements 8.0m2 85281, 16.0m2 70205, 24.0m2 27432 and 32.0m2 98868.

Warmup Thermostats also available.
Warmup Smart 6iE Thermostat Black 38985 & White 73492.
Warmup WiFi Element Thermostat Black 89704 & White 67910.
Warmup Tempo Programmable Thermostat Black 59743 & White 28754.

• For use with joisted floors, ideal for period home renovation projects.
• Heating pipe built into the structural floor, allowing faster heat-up times with no screeding required.
• One universal panel type panels feature fluted exits for a rapid installation.
• VLo is designed to work with ASHP and GSHP and in certain installations Solar Panels.
