Stormguard Brydale X Rain & Draught Seal 914mm

By Stormguard Product code: 17476 Pack size: Each

Product Details

• 914mm length
• Spring loaded all-weather seal
• Suits inward opening timber doors 762-914mm

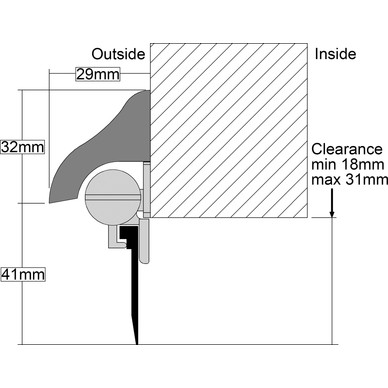

• Min clearance 18mm, max 31mm
• Incorporates stainable hardwood weatherboard
• No need to remove door for fitting

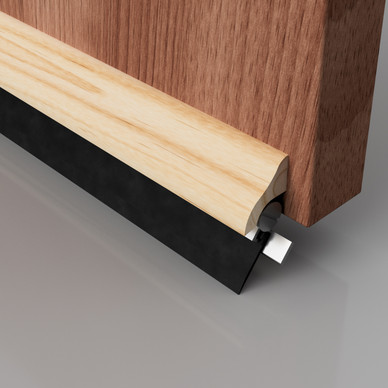

The Stormguard Brydale X Rain & Draught Seal is a clear access rain and draught excluder that seals gaps 15-22mm under the door. It fixes to the door face leaving the threshold clear, lifting clear off the raised floor covering automatically when the door is opened. The flexible nitrile seal automatically closes tightly onto the threshold or floor when the door is closed.

Technical Specification
Brand Stormguard
Length (mm) 914
Type Draught Excluder
Pack Size 1
Delivery details

DELIVERY OPTIONS (UK mainland only)

Next Day Delivery – £5.00 or FREE for orders over £25

  • Order before 9pm Monday to Thursday for next business day delivery
  • Order Friday to Sunday before 5pm for Monday delivery
  • Orders placed after Sunday at 5pm will be delivered the following Tuesday
Pre-12pm Delivery – £10.00 to arrive before 12pm on the scheduled days above
Saturday Delivery – £10.00 or £5.00 for orders over £25 & FREE for orders over £75 (order by 6pm Friday)
Sunday delivery – £10.00 or £5.00 for orders over £25 & FREE for orders over £75 (order by 4pm Saturday)
Times may vary for items being delivered directly from the supplier. For more information, please visit our delivery information page below.
Items over 30kg can only be delivered from Monday to Friday. If ordered before 6pm, please allow up to two business days for delivery. Orders placed after 6pm Thursday will be delivered after the weekend.
More about Delivery
Click & Collect details

Collection Details

Our opening times are 7am-8pm Monday-Friday, 7am-6pm Saturday and 9-4pm Sunday. Please check your local store is open on the store locator page, before you visit.

Once you have placed your order online, we’ll have it ready for you at the store you have selected in as little as 5 minutes. We will hold your order for 14 days, after which we will automatically generate a refund to the payment type you used to place the order.

Don’t forget your mobile number – Make sure your mobile number is added so that we can text you when your order is ready to collect. Please wait for your text or email before coming to collect your items.

If an item is eligible for Next Business Day Collection in store, the order must be placed by 9pm Monday to Thursday for collection the next day. Orders placed after 9pm on Thursday, and up to 5pm on Sunday, will be available for collection on Monday. For larger items over 30kg, please allow two business days.

Stormguard Brydale X Rain & Draught Seal 914mm is rated 4.3 out of 5 by 24.
Rated 3 out of 5 by from Well made product spoiled for lack of instructions Clearly well made of quality materials. However I needed to cut mine to fit a narrower door. There's no instructions included inspite of the mechanism needing some care to avoid damage. Some are available on the Stormguard site, what I saw looked like an old photocopy. A great shame. The Item was returned.
Date published: 2022-12-29
Rated 3 out of 5 by from Nice product but heavily effected by the cold It’s an okay product the big problem is the cold causes the mechanism to stick so it doesn’t spring back like it should
Date published: 2022-12-17
Rated 2 out of 5 by from Nice idea, shame about the seal I had high hopes this would provide an effective exterior draught seal to my front door. Clever idea I thought, looks well made and should work well. Sadly when I got it home and opened the box it was obvious the 'business edge' of the seal was so badly wavy it could never do its job effectively.. Returned and received a refund, only one in stock so no chance to find out if it was a one off defect on not.. If you are still tempted to buy it check it out in store
Date published: 2022-12-16
Rated 5 out of 5 by from Works a treat Wasn't convinced would work as well as it said, but with a bit of spray grease in mechanism works a treat. closes down nicely and not had any rain blown under since. Pretty easy to fit, just make sure your cutting the right end to fit!
Date published: 2022-12-03
Rated 5 out of 5 by from Stormguard Brydale Rain Deflector Easy to install & very effective.Most satisfied.
Date published: 2022-11-23
Rated 5 out of 5 by from Effective Rain and Draught excluder Outstanding product; desperation led me to risk £30 on it, but it really works. Follow the instructions exactly; I suspect they have been updated several times to iron out errors made by novice installers, top marks to the manufacturer. Shame I cannot say the same about the faulty Toolstation order notification system which again caused me a wasted journey.
Date published: 2022-11-17
Rated 4 out of 5 by from Great seal - take your time understanding how to fit it This is the second of these I have bought. This one I fitted to my Dad's house in time for winter. Glad I had done one before as this was easier. The instructions are pretty bad, it looks like an old photocopy from the '70's, Brydale could do with an upgrade here. Things to watch out for - make sure you trim the correct end (the end closest to the hinge) so you don't cut off the lug that folds down the front flap on closing. Ensure the door opens square before fitting the flap. On this last door the threshold internally was marginally higher inside which meant that when the door was fully opened the draft excluder fouled on the floor, which in turn meant the rubber strip folded in on itself when shutting the door. Easy enough to fix by moving the draft seal up 5mm but I could have got this right first time if I had fitted the draft seal with the door opened not shut. Last thing - the articulated front flap on shutting the door folds down. If your door is flush with the external step and no horizontal surface extends beyond the front edge of the door you will need to fashion an extension to your door sill. I had to screw on a piece of wood to the door sill about 40mm deep so that the flap closed tight against something and was not left hanging in mid-air. 4 out of 5 because of the poor instructions, the seal itself is 5/5
Date published: 2022-10-27
Rated 5 out of 5 by from Stormguard draught seal I was a bit wary of this before I bought it - but it is brilliant, and does exactly what it claims to do! Toolstaition excellent as usual.
Date published: 2022-07-28
