Multi Truss Hanger 47 x 97mm

By BPC Fixings Product code: 20088 Pack size: Each

£2.60 was £2.89 Exc. VAT £2.17

Product Details

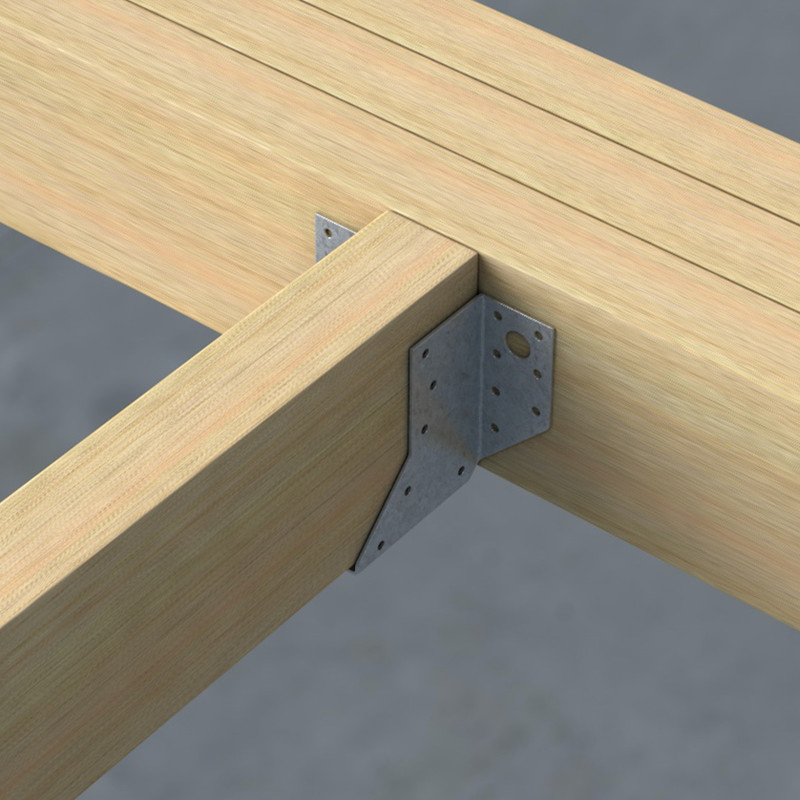

This heavy-duty timber-to-timber multi-truss hanger is ideal for supporting heavy loads when installing joists. Uses include fixing multiple truss units, main trimmer joists and purlin-to-beam connections. It's formed from 1.5 mm-thick galvanised steel in accordance with the BS EN 10346:2009 standard for strength, corrosion resistance and durability.

The hanger comes with 36 pre-punched fixing holes, which can be used with 30 x 3.75 mm sheradised square twisted nails, along with bolts where required. The nail holes are 4 mm in diameter, while the bolt holes suit an M12 fixing.

• Heavy-duty joist hanger for use where heavy loads occur

• 1.5 mm thick galvanised steel

• 36 pre-punched fixing holes

• 47(W) x 97(H) mm

Technical Specification
Brand BPC Fixings
Height (mm) 97
Material Galvanised Steel
Manufacturer ID MTH/240/47
