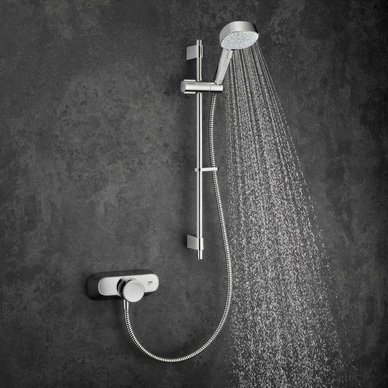

Mira Form Single Outlet Thermostatic Mixer Shower
by Mira Product Code: 23167 23167
Related Products
Product Details

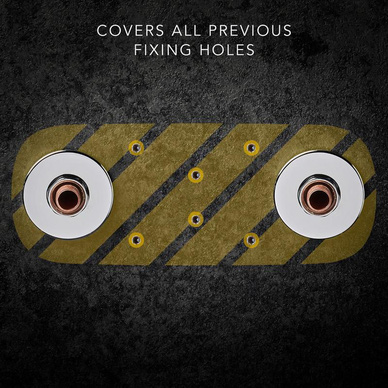

Adjustable inlet connections can adapt to existing 15mm pipework, while adjustable slide bar brackets allow you to reuse existing fixing holes. The valve shroud design cleverly conceals existing pipework too. Simply slot it into place - it's as if your previous mixer shower never existed!
Once fitted, the Mira Form is as easy to use as it was to install. There's one control for power and temperature, and a simple push-button operation to switch between the shower head's four spray settings. With precise thermostatic control and a maximum temperature stop, you're guaranteed safe and comfortable showering for all the family.
• Easy to use - one control for ON/OFF and temperature

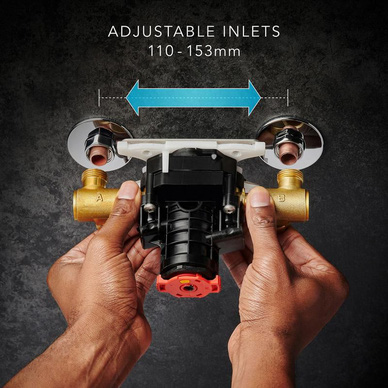

• Multi-fit mixer with adjustable inlet connections
• Retro-fits 95% of concentric mixers with 110-153mm pipe centres
• 660mm slide bar with adjustable ends - reuse old fixing holes

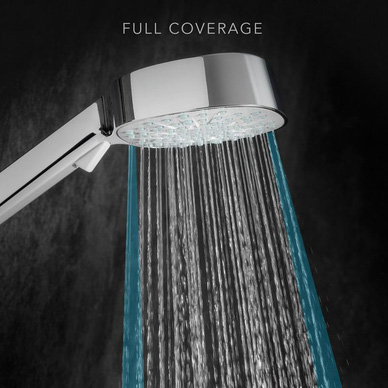

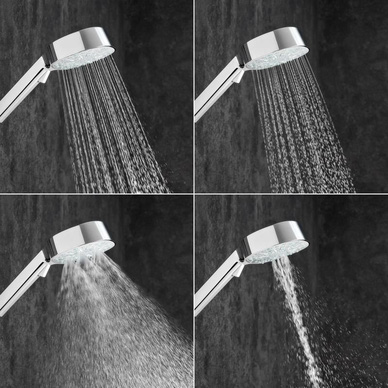

• Four-spray shower head with push-button mode change

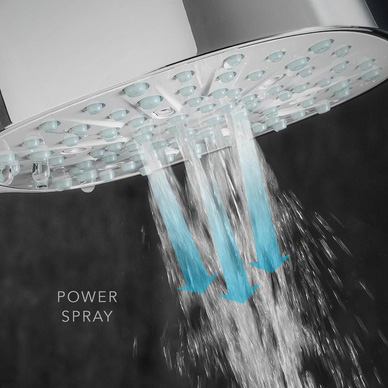

• Rub-clean nozzles - easier to prevent limescale build-up

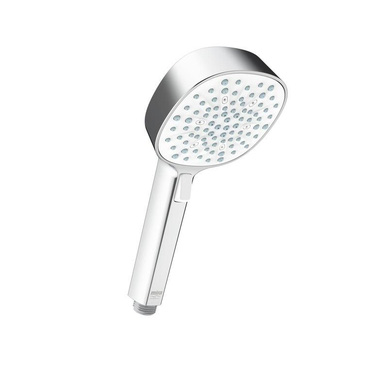

• 11cm shower head with 1.25m anti-twist, easy-clean hose
• Stainless steel backplate and high-quality chrome fittings

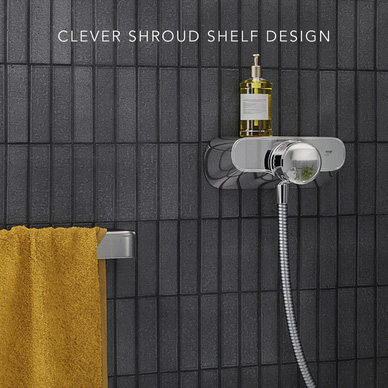

• Small shelf area on top of mixer for soap and shampoo bottles
• Precise thermostatic control and maximum temperature stop
• WRAS-approved
• Five-year manufacturer's warranty (T&Cs apply)
Technical Specification
Material | Stainless Steel |
Max. Water Temp | 85°C |
TMV2/TMV3 | TMV2 |
Brand | Mira |
Manufacturer ID | 31982W-CP |
Warranty (years) | 5 years |
Range Name | Form |
Colour | Chrome |
Max. Flow Rate | 9 L/min |
Inlet Connection | 15mm |
Finish | Polished |
Hose Length (m) | 1.25m |
Max. pressure (bar) | 5 |
Min. pressure (bar) | 0.1 bar |
No. of Outlets | 1 |
No. of Spray Patterns | 4 |
Pipe Centres | 110-153mm |
Shower Head Shape | Round |
Valve Position | Exposed |
Valve Controls | Concentric |
Max. pressure (bar) | 5 bar |
