Mira Atom ERD Thermostatic Bar Diverter Mixer Shower

By Mira Product code: 34484 Pack size: Each

Mira
Mira Atom ERD Thermostatic Bar Diverter Mixer Shower
Mira Atom ERD Thermostatic Bar Diverter Mixer Shower
Save
£50
£199.98 was £249.98 Exc. VAT £166.65
Quantity
Collection
Delivery

Login to save for later

Delivery Address
Not set

Collection Address
Not set

Product Details

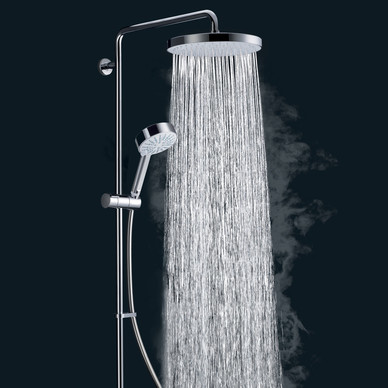

Chrome thermostatic exposed bar diverter mixer shower. Divert between a large fixed head and a smaller handset

• Delivers 12.14Ltr per minute at 0.5 bar
• Minimum Pressure: 0.1 bar
• Maximum Pressure: 10 bar
• Fixed 250mm head and adjustable riser rail
• 4 spray handset, 1.25m hose
• Pipe centres: 150mm
• 5 years manufacturer's warranty (T&Cs apply)



Two showerheads combine to deliver one premium experience. With its contemporary chrome finish, the Mira Atom ERD mixer shower is a perfect blend of style and performance. The fixed overhead deluge offers a luxurious, refreshing showering experience, while the additional handset provides custom control.

• 250mm fixed deluge head delivers a superior showering experience
• 110mm handset with four spray modes for bespoke showering
• Stainless steel 11mm shower hose
• Mira Magni-flo™ technology provides up to 3 times more flow at any pressure
• Mira Cool Shield™ technology ensures the valve doesn’t get hot during showering
• Separate flow and temperature controls offer extra precision
• Rub clean nozzles make cleaning quick and easy
• Includes fast-fix kit for easy, quick front of tile installation
• Cover existing holes with adjustable slide bar
• Compatible with any water system or pressure
• Minimal maintenance with long life filters and replaceable cartridge
• WRAS, KIWA and TMV2 approved

Technical Specification
Brand Mira
Colour by dominance Chrome
Material Stainless Steel
WRAS approved Yes
Manufacturer ID 1.1836.011
Warranty (years) 5
Type Mixer Shower
Min Pressure 0.1
Max Pressure 10
Finish Polished
Pipe Centres (mm) 150mm
Inlet Connection ½” BSP Pipework - ¾” BSP Valve
Hose Length (m) 1.25
Min. Flow Rate 3.4 L/min
Max. Flow Rate 24 L/min
Max. Water Temp 65°C
No. of Outlets Two
No. of Spray Patterns 4
Shower Head Shape Round
TMV2/TMV3 TMV2
Valve Controls Bar
Valve Position Exposed
Delivery details


Covid-19 Update

  • FREE Next Business Day delivery is available for orders over £25 for orders placed before 9pm Mon-Thur and before 6pm Sunday
  • Saturday and Sunday delivery is available for orders placed before 6pm on Friday for Saturday Delivery and 4pm Saturday for Sunday delivery. Items over 30kg can only be delivered next Business Day Mon-Fri. Orders placed after 9pm Thursday will be delivered the following Monday see here for details
  • Pre-12 delivery service is now available for weekday deliveries. Place your order before 9pm Mon-Thur for next business day delivery by 12pm. Orders placed after 9pm Thur and before 6pm Sunday will be delivered by 12pm Monday. UK mainland only
  • Once your order has been dispatched you will receive an invoice email with the courier details and your tracking number
  • Alternatively go to MyAccount, click on your Order History, click on the TRACK icon to link through to the carrier website and the tracking details for your delivery
  • Delivery direct from suppliers is available and specific delivery times will be displayed on the product page
Order Value: Under £25 Over £25 but less than £75 £75 & Over
Next Business Day Mon-Fri (order by 9pm Mon-Thur & Sun by 6pm) delivered before 6pm £5 Free Free
Pre-12 Delivery Mon-Fri (order by 9pm Mon-Thur & Sun by 6pm) delivered before 12pm next day £10 £5 £5
Remote areas standard delivery (2-4 days) £5 Free Free
Saturday Delivery (order by 6pm Friday) delivered before 6pm £10 £5 Free
Sunday Delivery (order by 4pm Saturday) delivered before 6pm £10 £5 Free


Please note items delivered by our suppliers are not available for the options above. Delivery times may vary.

More about Delivery & Returns
Click & Collect details

Covid 19 Update

Click & Collect

We are fully open and delighted to welcome our customers into our branches.

Our opening times are 7am-8pm Monday-Friday, 7am-7pm Saturday and 9-4pm Sunday

Our speedy 5 min Click and Collect service remains one of the safest ways to buy from us and minimises your time in store. Place your order at toolstation.com 7 days a week, and travel to store once your collection confirmation is received by email or text message.





Don’t forget your mobile number – Please ensure that your mobile number is added so that we can text you when your order is ready to collect.

Your items will be held at your selected Toolstation branch for 14 days, after which point your order will be put back to stock and refunded automatically.

Reviews
Mira Atom ERD Thermostatic Bar Diverter Mixer Shower is rated 4.7 out of 5 by 33.
Rated 3 out of 5 by from A best of both fixed and flexible shower A good quality shower but make sure you have enough height for the fixed rail ? Not adjustable !
Date published: 2021-04-10
Rated 5 out of 5 by from Very good quality easy to fit Very good quality easy to fit
Date published: 2021-04-09
Rated 5 out of 5 by from Can't get the family away from it! Great shower ! Exceptional shower - powerful and luxurious.
Date published: 2021-03-31
Rated 5 out of 5 by from Very good shower This is a very good shower at a competitive price from Toolstation. As a DIYer I installed it myself and it was very straightforward. Be aware that one of the pipe sections for the overhead shower component can also be supplied in a shorter size if needed but you have to order that from the manufacturer separately. I didn't need it, shower is fine for me with what has been supplied.
Date published: 2021-03-08
Rated 5 out of 5 by from Elegant shower Elegant shower, easy to fit with brass couplings rather than pushfit which I prefer. Shower volume is excellent.
Date published: 2021-02-05
Rated 4 out of 5 by from Easy Fit, nice quality. Positive : good quality item negative. Could be taller/ adjustable height. When fitting to recommended controls height, the shower rose rises about 6ft only so 4/5 inches extra would of been better. An extension is available I have now found. Temp control allows 3 degrees above thermo, again this could be hotter.
Date published: 2021-02-03
Rated 3 out of 5 by from Good shower but has practical issues It is a good size shower, which has been fitted by my plumber. The shower itself looks sturdy and it gives good sprays in both handheld and overhead showerheads. However the two issues I have are: -the diverter valve on the left side of the mixer bar does not have a stop/neutral click which means that you are never sure if the shower is stopped. Many times the shower tray is wet in the morning due to drips all night. Overtime this will increase the chances of mould growth. -After stopping the shower, everytime water drips from the overhead shower for about 1 to 3 mins. During this time you cannot dry using towel as the water is still dripping. Add the second issue to the first, so never sure that the dripping water after shower is the result of remaining water or because of the shower not stopped properly. I have had this shower for a couple of weeks now so reliability is not known but Mira is a good brand so I have hope.
Date published: 2020-08-12
Rated 5 out of 5 by from Mira shower Really nice product, customer really pleased with it. Installed in a loft without pump, great for low pressure situations.
Date published: 2020-07-24
