Kudox Premium Type 22 Steel Panel Radiator 400 x 1400mm 5935Btu
by Kudox Premium Product Code: 17506 17506
FREE PEGLER TRV
Worth £24.48
Get a free Pegler TRV with Lockshield when purchased with any Kudox premium steel panel radiator. Add both items to your trolley, discount will automatically be applied.
Related Products
Product Details

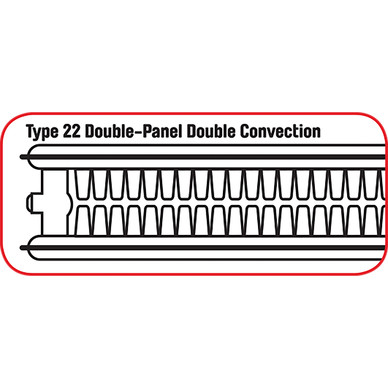

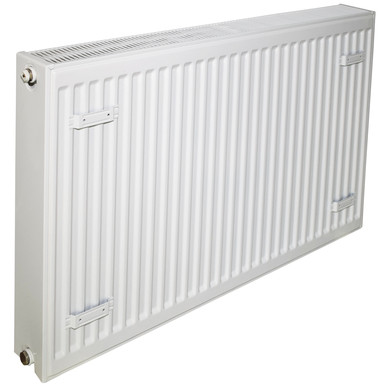

This radiator comes with two panels and two convectors, so it acts fast and offers a high heat output. The steel unit features a nanoceramic surface coating that enhances resistance to corrosion and rust. A glossy white finish means it goes well with any home interior. Plus, it's fitted with a top grille and side panels so the inner pipework isn't visible.
This radiator's horizontal and low-profile design means it's great for installing on walls with under-utilised space, such as beneath a window frame. It's supplied with all the necessary brackets and fixings to ensure quick and simple installation. Engineers have tested this radiator for quality and safety and it comes with a 15-year manufacturer's guarantee.
• White central heating convector radiator
• Pre-fitted top grille and side panels
• High heat output performance

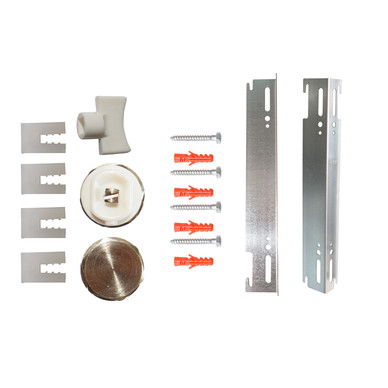

• Brackets and fixings included for easy installation
• Nanoceramic surface coating (RAL 9010)
• Maximum working pressure of 1000 kPa / 10 bar
• 15-year manufacturer's guarantee (T&Cs apply)
• Selected Kudox radiator spares are available free of charge from Toolstation stores
Technical Specification
Certification | EN442 |
Material | Steel |
Type | Type 22 |
Max. Hot Water Temp | 110°C |
Suitable Systems | Central Heating |
Radiator Style | Steel Panel |
Brand | Kudox Premium |
Manufacturer ID | 224001400 |
Warranty (years) | 15 years |
Range Name | Steel Panel Radiators |
Colour | White |
Depth (mm) | 104mm |
Width (mm) | 1400mm |
Wattage | 1739W |
Pack contents | Radiator, brackets, plugs and fittings |
Inlet Connection | 1/2" |
Finish | Gloss |
Min. pressure (bar) | 1.2 bar |
Pipe Centres | 1400mm |
BTU | 5935 |
Max. pressure (bar) | 10 |
Coating | Powder Coated |
BTU range | 4001-6000 |
Fitted Depth | 135mm |
Radiator Profile | Double Panel |
Delta T | Delta T50°C |
Radiator Orientation | Horizontal |
Weight (Kg) | 29.82KG |
