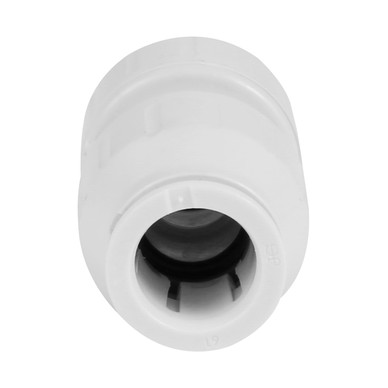

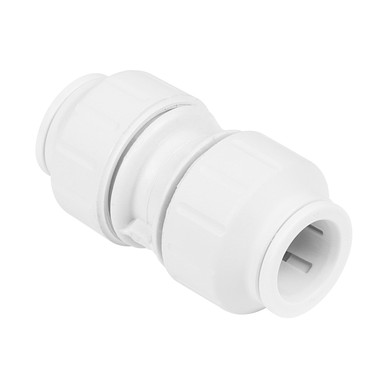

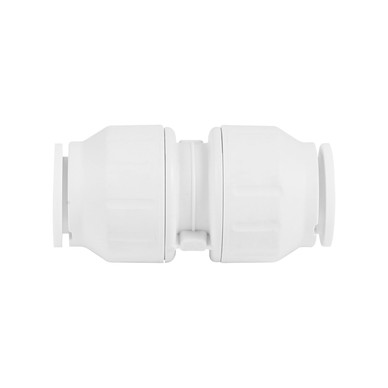

JG Speedfit Equal Straight Coupler 22mm

By JG Speedfit Product code: 26374 Pack size: 5 Pack

£11.84 Exc. VAT £9.87 Price per unit £2.37/Each
Selected
Quantity

Product Details

Choose these equal straight couplers to securely connect two pipes of the same size. Part of the JG Speedfit plastic push-fit system, the 22mm connectors couldn’t be easier to use – simply push it fully onto the pipe, then twist the plastic nut clockwise to lock it in place.

Up to 40% faster to install than traditional methods, the equal straight connectors are also easier to use in tight spaces because there’s no need for hot works and tools. Demounting the connection is simple too – you just unlock the nut by hand, push the collet towards the body of the push-fit fitting and pull the pipe to release.

JG Speedfit products blend push-fit and multi-seal technology for a reliable leak-proof connection. The extensive choice of plastic, brass and chrome fittings, tap connectors, valves and flexi hoses gives you everything you need to complete the job in no time.

By combining these products with plastic push-fit pipe, you can create a truly flexible plumbing and heating system. All products are accredited with the leading testing and approval organisations including WRAS, and are suitable for use with plastic or copper pipe.

• Connects two 22mm pipes quickly and securely

• Install or demount in seconds by hand

• Easier to install in confined spaces – no hot works or tools required

• Suitable for hot and cold water services, central heating systems and combi systems

• Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe

• Minimum operating temperature of 20 °C

• Maximum operating temperature of 105 °C

• Maximum operating pressure at minimum temperature of 12 bar

• Maximum operating pressure at maximum temperature of 3 bar

• BS EN 7291 Parts 1, 2, 3 and S

• WRAS-approved

• 50-year guarantee (T&Cs apply)

Technical Specification
Brand JG Speedfit
Colour White
Material Plastic
Manufacturer ID PEM0422W
Warranty (years) 50
Diameter (mm) 22
Pack Size 5
User Guide click here
Fitting Type Coupler
Equal or Reducing Equal
Delivery details

DELIVERY OPTIONS (UK mainland only)

Next Day Delivery – £5.00 or FREE for orders over £25

  • Order before 7pm Monday to Thursday for next business day delivery
  • Order Friday to Sunday before 5pm for Monday delivery
  • Orders placed after Sunday at 5pm will be delivered the following Tuesday
Pre-12pm Delivery – £10.00 to arrive before 12pm on the scheduled days above
Saturday Delivery – £10.00 or £5.00 for orders over £25 & FREE for orders over £75 (order by 6pm Friday)
Sunday delivery – £10.00 or £5.00 for orders over £25 & FREE for orders over £75 (order by 4pm Saturday)
Times may vary for items being delivered directly from the supplier. For more information, please visit our delivery information page below.
Items over 30kg can only be delivered from Monday to Friday. If ordered before 6pm, please allow up to two business days for delivery. Orders placed after 6pm Thursday will be delivered after the weekend.
More about Delivery
Click & Collect details

Collection Details

Our opening times are 7am-8pm Monday-Friday, 7am-6pm Saturday and 9-4pm Sunday. Please check your local branch is open on the branch locator page, before you visit.

Once you have placed your order online, we’ll have it ready for you at the branch you have selected in as little as 5 minutes. We will hold your order for 14 days, after which we will automatically generate a refund to the payment type you used to place the order.

Don’t forget your mobile number – Make sure your mobile number is added so that we can text you when your order is ready to collect. Please wait for your text or email before coming to collect your items.

If an item is eligible for Next Business Day Collection in branch, the order must be placed by 7pm Monday to Thursday for collection the next day. Orders placed after 7pm on Thursday, and up to 5pm on Sunday, will be available for collection on Monday. For larger items over 30kg, please allow two business days.

Reviews
JG Speedfit Equal Straight Coupler 22mm (5 Pack) is rated 4.9 out of 5 by 63.
Rated 5 out of 5 by from I'm converted! Just re-workwed some horrible old pipe work and used speedfit parts for the first time. Out of 17 speedfit joints and 3 compression joints, I had just one small leak - yes, it was one of the compression joints! Will definitely use speedfit parts in the future!
Date published: 2022-06-19
Rated 5 out of 5 by from How to couple easily These are probably the best push fit fittings as they are easy to demount and change piping patterns. Have used these now for nearly 10years and have had no problems with them, they are reliable and easy to use.
Date published: 2022-04-27
Rated 5 out of 5 by from Piece of cake My go to plumbing Fittings. You have to try really hard to make a mess with these. Easy to fit, push in pipe and twist collar, no tools to fit, no tool to demount. Piece of cake.
Date published: 2022-03-11
Rated 4 out of 5 by from Speed fit connector Easy to use but will reduce flow rate when using all plastic pipe as id of plastic insert is about 15mm on a 22mm pipe, I used this to connect 22mm copper pipe to get flow rate better.
Date published: 2021-12-19
Rated 5 out of 5 by from Puah it home fully Joins 2 pieces of poly pipe or copper pipe together without having to set your house on fire with a blow torch JG fittings are not a bad price especially as they are demountable and dont need any special tools to do so. If you are wanting to claim on your insurance then use copper however if your property is in a decent state use these but just make sure you connect them properly othwrwise you will be claiming flood damage on your insurance instead!
Date published: 2021-11-05
Rated 5 out of 5 by from Brilliant. These couplings worked perfectly in the limited space I had available. Far less hassle than compression or solder joints and obviously much quicker. Just make sure that any copper pipe end is clean and free from damage and if using plastic pipe, use the inserts with additional ‘O’ rings.
Date published: 2021-10-14
Rated 5 out of 5 by from Speedfit reliability Speedfit reliabililty - never had a problem
Date published: 2021-09-18
Rated 5 out of 5 by from JG Speedfit are the bee's knee's Never had an issue with any of the Speedfit range. Would recommend.
Date published: 2021-09-04
