JG Speedfit Elbow Connector 22mm

Product Details

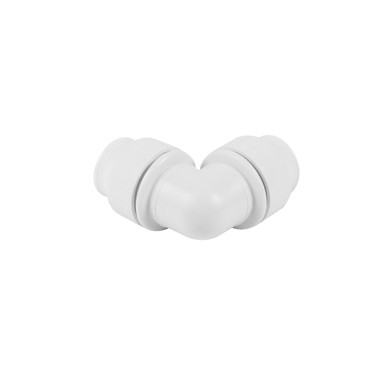

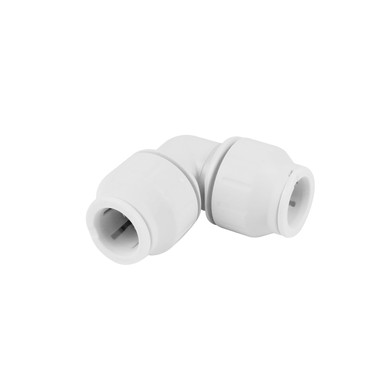

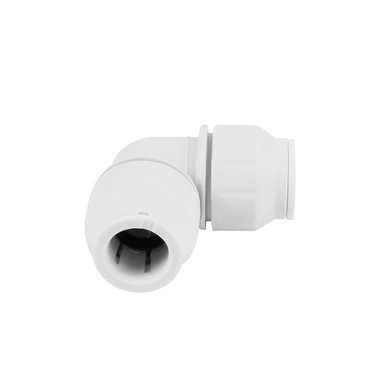

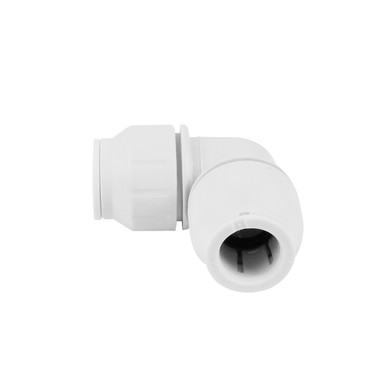

Connect equally-sized pipes to form a 90° pipe bend quickly and securely with this JG Speedfit 22mm elbow. It can be installed in seconds, and no tools are needed – simply push it fully onto the pipe and twist the plastic nut clockwise to lock in place. This Twist & Lock mechanism secures the fitting and adds compression too.

At up to 40% faster to install than traditional methods, JG Speedfit equal elbow push-fit fittings are much easier to use in confined spaces as there’s no need for hot works or tools. Demounting the connection is equally easy. Just unlock the nut by hand and push the collet towards the body of the fitting, then pull the pipe to release.

JG Speedfit blends push-fit and multi-seal technology for a reliable leak-proof connection. Suitable for use with plastic or copper pipe, you can create a truly flexible plumbing and heating system, and complete the job in no time.

• Push-fit system is easy to use for faster installation times

• Provides a secure and reliable leak-proof connection

• Install or demount in seconds, without the need for tools

• Suitable for hot and cold water services

• Can be used on central heating systems and combi systems

• Minimum operating temperature of 20°C

• Maximum operating temperature of 105°C

• 12 bar maximum operating pressure at minimum temperature

• 3 bar maximum operating pressure at maximum temperature

• 50-year guarantee

• Manufactured to BS EN 7291 Parts 1, 2, 3 and S

• WRAS-approved

• Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe
