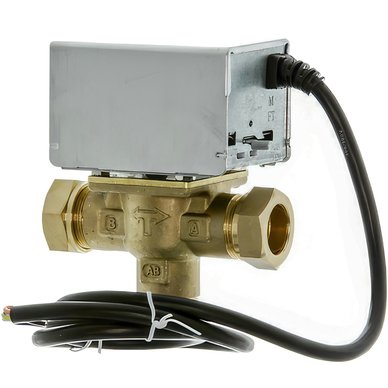

Flume 3 Port Mid Position Motorised Valve 22mm
by FlumeProduct code: AI637
Flume 3 Port Mid Position Motorised Valve 22mm
by FlumeProduct code: AI637
Related products
Product details
Constructed with a heavy-duty brass body, the valve ensures long-term durability in demanding heating environments. The built-in manual override lever offers simple control during system filling, draining, and servicing.
The spring-return actuator safely reverts the valve to the mid-position in the event of a power failure. Install the unit easily using the standard 22mm compression fittings.
• Three-port mid-position design – controls flow to heating and hot water
• Spring-return actuator – prevents flow restriction during power failure
• Manual override lever – assists with system filling and maintenance
• Robust brass body – ensures long-lasting durability
• Available in a choice of sizes
Reviews★★★★★ ★★★★★
Technical specification
| Brand | Flume |
| Manufacturer ID | FLU-MID |
| Warranty (years) | 1 year |
| Energy class | N/A |
| Colour | Silver |
| Height (mm) | 132mm |
| Length (mm) | 107mm |
| Width (mm) | 60mm |
| Suitable For | Use on fully pumped systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will control the flow from the boiler to either hot water only, heating only or both simultaneously |
| Voltage | 230V |
| Wattage | 6W |
| Pack contents | 1 x Flume FLU-MID 22mm Mid Position Valve, 1 x actuator, 1 x 1m cable, 3 x 22mm compression nuts & olives, 1 x Instruction Manual |
| Pack Size | 1 |
| Cable length (m) | 1 |
| Colour Family | Silver |
| Connection Size | 22mm |
| Connection Type | Compression |
| Number of Ports | 3 |
| Installation Type | 5 Wire |
| Weight (Kg) | 1.03KG |
