EHC ASTRO V2 Electric Wall Mounted Combi Boiler 12kW
by Electric Heating Company Product Code: 93540 93540
Related products
Product details
It is an ideal solution to properties with no access to mains gas supply and homes which have gas boiler restrictions e.g. listed buildings and bed-sit sleeping areas. Not only is the Electric Boiler the perfect choice for wet central heating but is also suited to Underfloor Heating.
The Electric Boiler outputs are 12kW, 14.4kW & 24kW Three Phase. The operating temperatures of the boiler can be adjusted using the easy to use Control Panel which boasts an LED display. The temperature outputs range from 30°C-60°C (Hot Water) and 30°C-80°C (Heating).
With superior performance and reliability, the Astro Electric Combi Boiler provides on demand heat and instantaneous domestic hot water. They are suitable for small properties that have a shower and hot water outlets for sinks. In homes with larger hot water requirements, it can be combined with a hot water storage cylinder.
Consumption of the Astro Boiler is highly efficient, due to its superior inner design. With no flue required, the Electric Combi Boiler rapidly provides Heating and Domestic Hot Water.

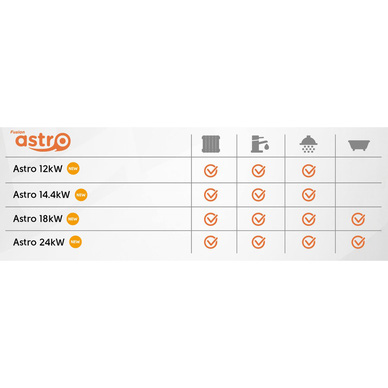

• Outputs are 12kW, 14.4kW & 24kW
• Provides instant domestic hot water & central heating
• With superior performance and reliability
• Suitable for small Properties that have a Shower and Hot Water outlets for sinks
• Provides on demand heat and instantaneous domestic hot water
• The operating temperatures of the boiler can be adjusted using the easy to use Control Panel which boasts a LED display - the temperature outputs range from 30°C-60°C (Hot Water) and 30°C-80°C (Heating)
• Consumption of the Astro Boiler is highly efficient, due to its inner design. With no flue requirement the Electric Combi Boiler rapidly provides Heating and Domestic Hot Water
• Where 3Phase Electricity is available our 24Kw Astro Boilers would have sufficient flow rates to fill a Bath in a suitable timescale
Unfortunately due to the nature of the products and for safety reasons, we cannot accept returns on unwanted boilers (your statutory rights are not affected).
The boiler manufacturers have dedicated helplines to offer support where required. Please refer to the helpline numbers in your installation manual, or our after sales page for further details.
Reviews
★★★★★
★★★★★
Technical specification
| Type | Combination Boiler |
| Kw | 12 |
| Temperature range | Heating: 30-80°C |
| Temperature range | Water: 30-60°C |
| Energy Efficiency Rating | Heating: D |
| Energy Efficiency Rating | Water: A |
| Brand | Electric Heating Company |
| Manufacturer ID | ASTRO12KW.v2 |
| Warranty (years) | 5 years |
| Energy class | D |
| Range Name | Fusion Astro |
| Colour | White |
| Height (mm) | 740mm |
| Depth (mm) | 320mm |
| Width (mm) | 435mm |
| Interior / Exterior Use | Interior |
| Display Type | LED |
| Suitable For | Under Floor Heating |
| Voltage | 230V |
| Smart Home Compatibility | Not Smart Compatible |
| Sound volume | 32dB |
| Pack contents | 1 x Fusion Astro electric combi boiler, 1 x manual |
| Pack Size | 1 |
| Colour Family | White |
| Amp rating | 52A |
| Fuel Type | Electric |
| BTU | 40968 |
| Wattage | 12KW |
| Installation Type | Wall Mounted |
| Solar Compatible | No |
| Weight (Kg) | 38KG |
| Energy Rating Heating | D |
| Minimum Temperature( Heating) | 30°C |
| Minimum Temperature( Water) | 30°C |
| Maximum Temperature( Water) | 60°C |
| Energy Rating Water | A |
| Maximum Temperature( Heating) | 80°C |
