DeWalt 18V XR Brushless SDS+ Rotary Hammer 2 x 5.0Ah

By DeWalt Product code: 23213 Pack size: Each

£302.98 Exc. VAT £252.48

Product Details

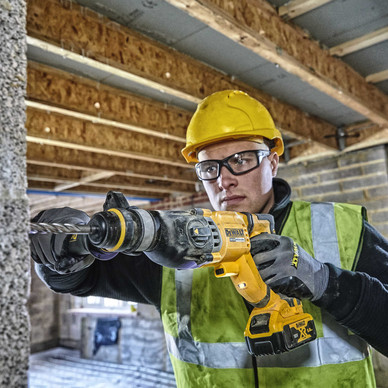

Need to drill into concrete? Use the power of this DeWalt DCH263 SDS+ rotary hammer to ensure the job is done properly, and with no time wasted.

Powered by a highly efficient brushless motor and an 18V XR battery for extended runtime, this cordless rotary hammer delivers fast drilling up to 28mm into solid concrete. With DeWalt’s innovative Active Vibration Control handle, vibrations are limited to 9.1m/s² – this means you can work for longer and get more done, with less discomfort and fatigue.

The DCH263 has three modes of operation, so you can take on a variety of tasks from light chiselling to rotary-only drilling. You can use it on wood and metal too. Working in low light? No problem – the hammer drill is fitted with its own LED work light, allowing you to illuminate the work area and improve visibility.

• Drill, impact or chisel – choose from three modes to best suit your job

• Rotation stop mode is perfect for light chiselling in plaster, tiles and render

• Impact stop mode is ideal for rotary-only drilling in wood and metal

• Brushless motor combines power with efficiency for top performance

• High-capacity XR 5.0Ah 18V Lithium-ion battery for longer run times

• Drill anchors and fix holes into concrete, brick or masonry from 4mm to 28mm

• Maximum drilling – 28mm in concrete, 30mm in wood, 13mm in metal

• Bright white LED with delay feature improves visibility when working in low light

• Low vibration at 9.1m/s² – work for longer with less discomfort or fatigue

• Compact and lightweight design is easier to hold for extended operating periods

• Multi-position side handle for a better grip and complete control

• Includes DCH263 rotary hammer, 2x 5.0Ah batteries, XR charger and case

DeWalt DCH263 18V XR Brushless SDS-Plus Rotary Hammer Specifications

• Voltage: 18V

• Brushless motor

• Battery type: XR Li-Ion

• Batteries included: 2 x 5.0Ah

• Tool Holder: SDS-Plus

• Max. Drilling Capacity (Concrete): 28mm

• Max. Drilling Capacity (Metal): 13mm

• Max. Drilling Capacity (Wood): 30mm

• Impact energy (EPTA 05/2009) 3.0J

• No Load Speed: 0 - 1165 rpm

• Hand/Arm Vibration - Hammer drilling into concrete 9.1 m/s²

• Vibration Control: Yes

• Anti Rotation System: No

• Clutch: Yes

• Dust Solution Compatible: Yes

• Perform and Protect: Yes

• Quick Change Chuck: No

• Hammer Drilling Mode: Yes

• Chipping Mode: Yes

• Rotation Only Mode: Yes

• Max. Drilling Capacity (Core bit): 65mm

• Weight: 2.7kg / (incl. battery) 3.3kg

• Height/length/width: 187mm / 404mm / 84mm

• Uncertainty K 1 (Vibration): 1.5 m/s²

• Hand/Arm Vibration: chiselling 7.7 m/s²

• Uncertainty K 2 (Vibration): 1.5 m/s²

• Hand/Arm Vibration: drilling into metal <2.5

• Uncertainty K 3 (Vibration): 1.5 m/s²

• Hand/Arm Vibration: screw driving without impact <2.5

• Uncertainty K 4 (Vibration): 1.5 m/s²

• Sound Pressure: 85.7dB(A)

• Sound Pressure Uncertainty: 3.1dB(A)

• Sound Power: 96dB(A)

• Sound Power Uncertainty: 3.1dB(A)

• Blows per Minute: 0 - 4300 bpm

Technical Specification
Brand DeWalt
Unavailable offshore 1
Manufacturer ID DCH263P2-GB
Voltage 18
Warranty (years) 1
Power Source / Cordless Cordless
Batteries Included 2 x 5.0Ah
Weight (kg) 3.3
Corded or Cordless Cordless
Brushed or Brushless Brushless
Power Supply Battery
