Coburn Straightaway 100 One Door System 1250mm

By Coburn Product code: 17069 Pack size: Each

£74.98 Exc. VAT £62.48

Product Details

Straightaway 100 is a top hung sliding door system for heavier weight doors. It can be used internally and is suited to applications where large sliding doors are required to slide effortlessly such as room dividers and room entrances.

• Tracks can be mounted directly to the soffit or wall mounted using brackets
• Detachable door plates enable easy and efficient installation
• No floor channel needed to allow for a clear threshold (please note door guide needs to be routed into bottom of door)
• Smooth and quiet operation provided by aluminium track and nylon wheeled hangers
• Any number of doors can be used on single or multiple lines of track to cover the width of the opening (use one trackset per door)
• Tested to over 100,000 cycles

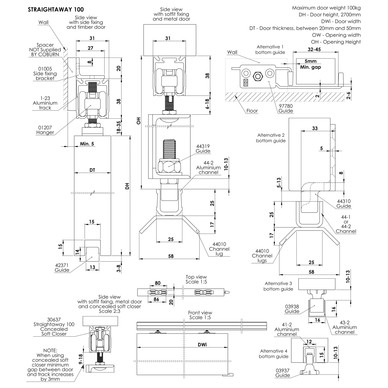

Technical Information:
• Closure Type - Sliding
• Maximum Door Weight - 100kg
• Maximum Door Width - 1250mm
• Maximum Door Thickness - 50mm
• Maximum Door Height - 2700mm
• Suitable Door Thickness - 20-50mm
• Suitable Door Material - Timber
• Fitting Position - Top Hung

Technical Specification
Brand Coburn
Colour Multi
Material Nylon & Aluminium
Manufacturer ID 01224
Warranty (years) 1
Type Sliding Door System
Max Weight (kg) 100
Finish Anodised Aluminium
Pack Size 1
User Guide click here

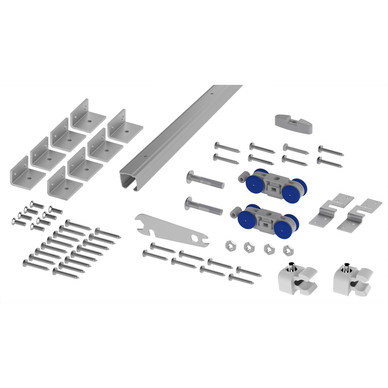

Pack Contents 1 x 2.4m aluminium top track, 5 x side fixing wall brackets, 2 x nylon wheeled hangers with detachable door plates, 2 x track end pieces with retaining catch, spanner, fittings
Door Width (mm) 1250 max.
Fixings Supplied Wall Fixings Not Included
Door Type Sliding
Mounting Type Top Hung
