Coburn Hideaway Pocket Door Kit H48A for 1219 x 2743mm Doors - 90kg

By Coburn Product code: 26866 Pack size: Each

£309.98 Exc. VAT £258.32
Selected
Quantity

Product Details

Hideaway is a pocket door framing kit suitable for plasterboard walls, created to hide sliding doors within a wall cavity. Hideaway is able to recover the space normally occupied by traditional hinged doors and is a simple but perfect solution for sliding pocket doors. The various accessories such as soft closing and hold open make it suitable for a wide range of applications around the home.

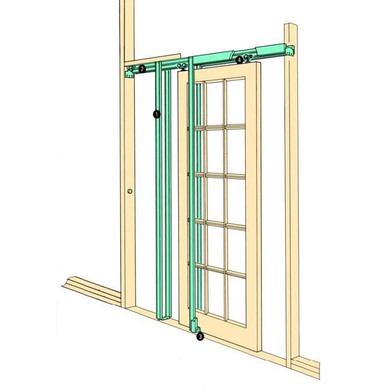

• Floor plate brackets and steel-wrapped studs nailed to pre-assembled header makes installation simple whilst providing maximum rigidity
• Keyhole slots in the track and unique hanger locking clip allows easy fitting and removal of the door if required
• No bottom channel needed providing a clear threshold, and no routing of underside of door for floor guide
• Smooth and quiet operation provided by nylon wheeled hangers
• Can be used for a single door or a pair of bi-parting doors (use one kit per door with a jointing kit)
• Can be cut down to suit door size

Technical Information:
• Closure Type - Sliding
• Maximum Door Weight - 90kg
• Maximum Door Width - 1219mm
• Maximum Door Thickness - 44mm
• Maximum Door Height - 2743mm
• Suitable Door Thickness - 35-44mm
• Suitable Door Material - Timber
• Fitting Position - Top Hung
• Finished Wall Thickness - 115mm

Technical Specification
Brand Coburn
Colour Multi
Material Nylon & Steel
Manufacturer ID 61848
Warranty (years) 1
Video click here
Type Pocket Door Kit
Max Weight (kg) 90
Pack Size 1
User Guide click here
User Guide click here
Pack Contents Pre assembled header with track and brackets, 2 x nylon wheeled hangers with detachable plates, 4 x plastic spacers, 1 x door stop, 6 x split studs, 3 x floor plates, 2 x guides, 1 x spanner
Door Width (mm) 1219 max.
Fixings Supplied Yes
Door Type Sliding
Mounting Type Top Hung
Reviews
Coburn Hideaway Pocket Door Kit H48A for 1219 x 2743mm Doors - 90kg is rated 2.5 out of 5 by 2.
Rated 2 out of 5 by from Soft door closer Very poor instructions and faulty door stop - waiting 48hours for Coburn to respond
Date published: 2023-03-21
Rated 3 out of 5 by from Pocket door piston release Works fine and as expected to release door from pocket, but really expensive for what it is. The latter is what detracts from 5 stars
Date published: 2023-03-21
