Coburn Flat Track 100 Top Mount Hanger System One Door 1000mm - Black Finish

By Coburn Product code: 75250 Pack size: Each

£159.98 Exc. VAT £133.32

Product Details

• Top hung sliding system for timber doors up to 100kg
• Barn door style system with exposed fittings
• For single or bi-parting doors
• No bottom track required to allow for a clear threshold

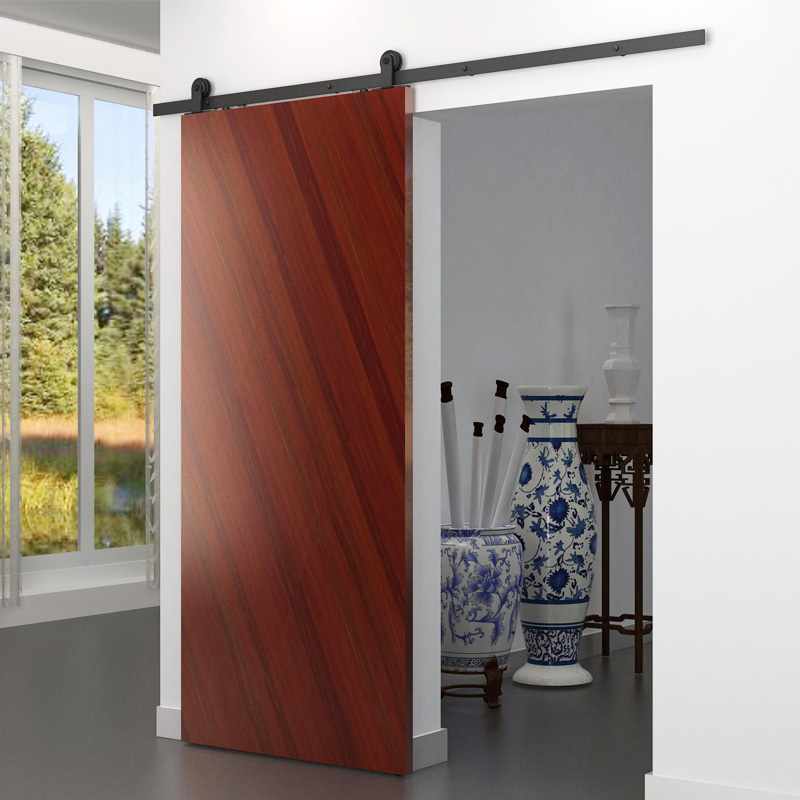

Flat Track 100 is a simple “barn door” style hardware system with exposed fittings for a rustic look. The top mount hangers are one of many styles available and are perfect for interior home renovation projects.

• Soft open & closing available - use 2 soft close kits for soft open and close
• Solid feel with side fixed steel top track mounted directly to the soffit
• No floor channel needed to allow for a clear threshold (please note, door guide needs to be routed into bottom of door)
• Smooth and quiet operation provided by nylon wheeled hangers
• Can be used for a single door or a pair of bi parting doors (use one trackset per door)
• Tested to over 100,000 cycles

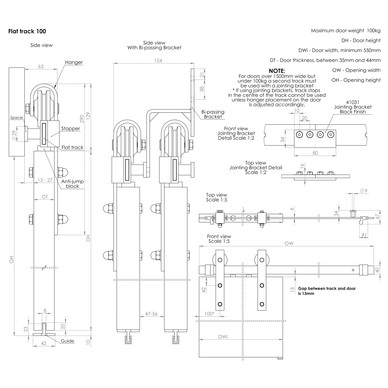

Technical Information:
• Closure Type - Sliding
• Maximum Door Weight - 100kg
• Maximum Door Width - 550-1000mm
• Maximum Door Thickness - 44mm
• Maximum Door Height - 2700mm
• Suitable Door Thickness - 35-44mm
• Suitable Door Material - Timber
• Fitting Position - Top Hung

Technical Specification
Brand Coburn
Colour Black
Material Nylon & Steel
Manufacturer ID 41047
Warranty (years) 1
Type Barn Door Style Sliding System
Max Weight (kg) 100
Finish Galvanised Steel
Pack Size 1
User Guide click here

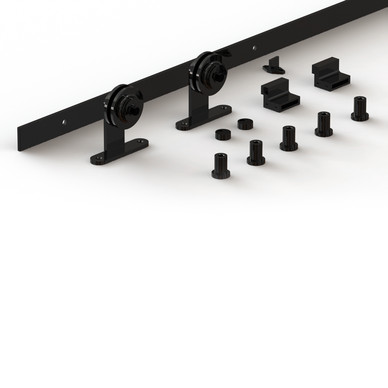

Pack Contents 1 x 2m steel top track, 5 x wall spacers and mounting fixings, 2 x nylon wheeled hangers, 2 x end stops, 2 x anti jump blocks, 1 x door guide
Door Width (mm) 1000 max.
Fixings Supplied Wall Fixings Included For Masonry
Door Type Sliding
Mounting Type Top Hung
