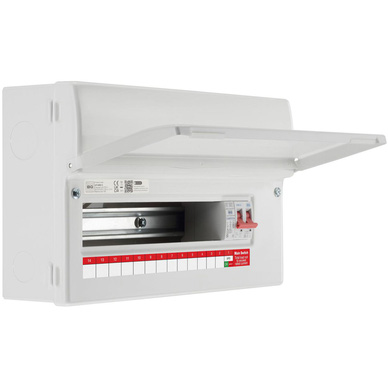

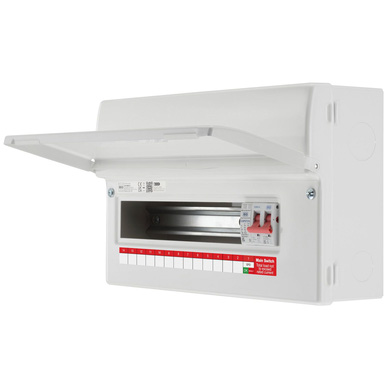

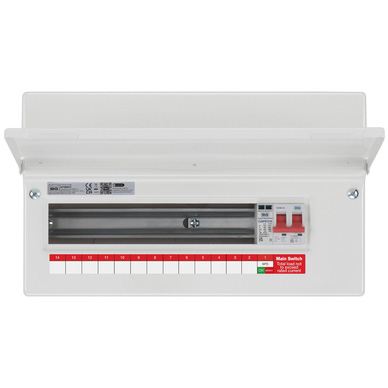

BG Unpopulated Consumer Unit & SPD Protection, Main Switch 100A 13 Way

A 13-way, 16-module consumer unit from the BG Circuit Protection range, offering safety and flexibility with an SPD that removes the need for extra MCB protection. Features include MCB-style blanks, clip-in cable protector, redesigned DIN rail, increased knockouts, a 100A main switch, and future upgrade support.

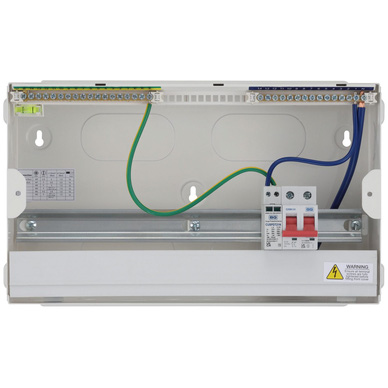

• MAIN SWITCH CONSUMER UNIT – double pole isolation and includes single module Type 2 SPD, 100A main switch, offset incomer, and all internal cables, terminals, large busbar cover, labels and blanks.

• FLEXIBLE COMBINATIONS – long terminal bars and floating busbar provide space for MCB, RCBO, SPD, AFDD devices for flexibility and upgrades or expansion for solar energy integration or EV charging.

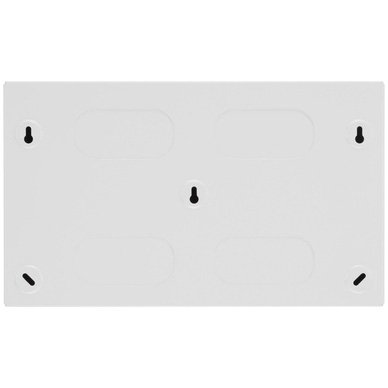

• ENHANCED INSTALLATION – raised, removable DIN rail designed for secure device attachment, flexible grommet strip, tripod fixing points and optimised knockouts on all sides for maximum adaptability.

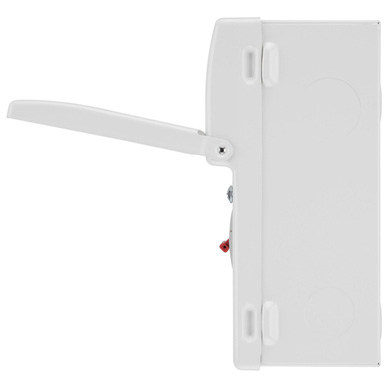

• EASY ACCESS – access the 13-way, 16-module consumer unit with an upwards-opening cover with magnetic retainer for convenience. Large area to lift the visor provides easier operation and support.

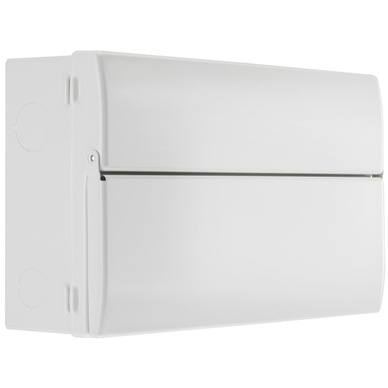

• 10-YEAR WARRANTY – giving you peace of mind with this British General product. A metal IP2XC consumer unit certified to BS EN 61439-3, BS 60947-3, BS 7671 regulations.
