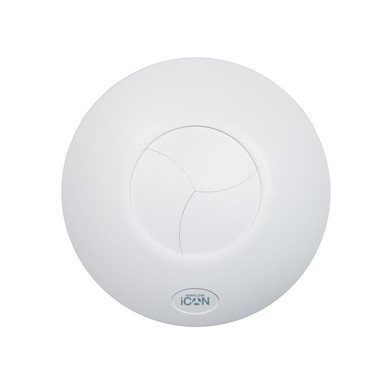

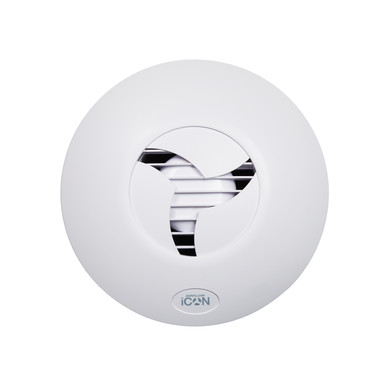

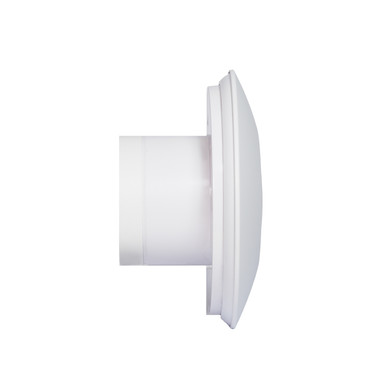

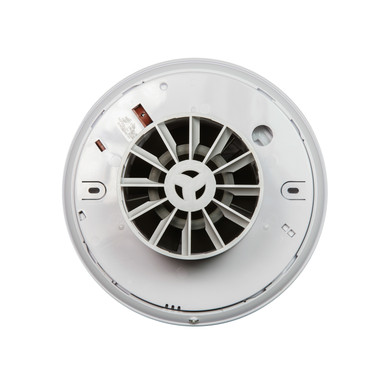

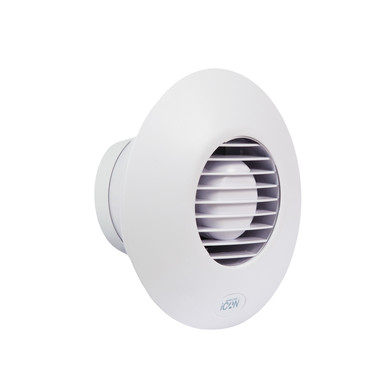

Airflow Extractor Fan iCON15 100mm

By Airflow Product code: 82035 Pack size: Each

£56.98 Exc. VAT £47.48

Product Details

The iCON 15 and 30 axial fans are ideal for toilets, en-suites, shower rooms and bathrooms. The iCON 60 is a mixed centrifugal/axial fan ideal for kitchens, larger bathrooms and lounges. Supplied as a standard fan, interchangeable modules are available dependant on the install requirements.

• Flow rates:
ICON15 up to 19 l/sec (68 m³/hr)
ICON30 up to 32 l/sec (118 m³/hr)
ICON60 up to 72 l/sec (260 m³/hr)
• Sound (@3m); ICON15 28.8dBA, ICON30 33.3dBA, ICON60 41.6dBA
• IPX4 rating
• Part F & L compliant
• Stylish design, low energy and quiet in use
• Wall, ceiling or recessed mounting

Interchangeable modules available based on requirements; 35440 Adjustable Timer, 99567 Pull Cord, 97130 Humidistat Pull Cord with Timer, 29129 Motion Sensor with Timer, 20936 Motion Sensor/Humidistat/Timer

• Twist on/off cover requires only a single side entry fixing screw
• 3 year warranty

Dimensions H x W x D:
• ICON15 -197 x 197 x 108.5mm
• ICON30-225 x 225 x 144mm
• ICON60-280 x 280 x 165mm

Technical Specification
Brand Airflow
Colour White
Width (mm) 197
Height (mm) 197
Manufacturer ID 72683501
Voltage 230
Wattage 9.4
Width (mm) 197
Safety Data Sheet click here
Warranty (years) 3
Certification Part F & L compliant
Type Standard
Depth (mm) 108.5
Size (mm) 100
Diameter (mm) 100
IP Rating IPX4
Extractor Fan Shape Round
Size 100mm
Range Name iCON15
Mounting Type Wall, ceiling or recessed
Delivery details

DELIVERY OPTIONS (UK mainland only)

Next Day Delivery – £5.00 or FREE for orders over £25

  • Order before 7pm Monday to Thursday for next business day delivery
  • Order Friday to Sunday before 5pm for Monday delivery
  • Orders placed after Sunday at 5pm will be delivered the following Tuesday

Pre-12pm Delivery – £10.00 or £5.00 for orders over £25, to arrive before 12pm on the scheduled days above

Saturday Delivery – £10.00 or £5.00 for orders over £25 & FREE for orders over £75 (order by 6pm Friday)

Sunday delivery – £10.00 or £5.00 for orders over £25 & FREE for orders over £75 (order by 4pm Saturday)

Times may vary for items being delivered directly from the supplier. For more information, please visit our delivery information page below.

Items over 30kg can only be delivered from Monday to Friday. If ordered before 6pm, please allow up to two business days for delivery. Orders placed after 6pm Thursday will be delivered after the weekend.

More about Delivery
Click & Collect details

Collection Details

Our opening times are 7am-8pm Monday-Friday, 7am-7pm Saturday and 9-4pm Sunday. Please check your local branch is open on the branch locator page, before you visit.

Once you have placed your order online, we’ll have it ready for you at the branch you have selected in as little as 5 minutes. We will hold your order for 14 days, after which we will automatically generate a refund to the payment type you used to place the order.

Don’t forget your mobile number – Make sure your mobile number is added so that we can text you when your order is ready to collect. Please wait for your text or email before coming to collect your items.

If an item is eligible for Next Business Day Collection in branch, the order must be placed by 7pm Monday to Thursday for collection the next day. Orders placed after 7pm on Thursday, and up to 5pm on Sunday, will be available for collection on Monday. For larger items over 30kg, please allow two business days.

Airflow Extractor Fan iCON15 100mm is rated 4.9 out of 5 by 15.
Rated 5 out of 5 by from Professional Fan excellant bit of kit, though you need to choose a module when purchasing. Easy fit, almost silent running
Date published: 2022-04-27
Rated 4 out of 5 by from Airflow extractor fan nice fian easy to fit. expensive when u consider if u want a timer u have to buy an extra module to fit, coming in at just under £100 for both
Date published: 2022-04-26
Rated 5 out of 5 by from Good device Good device. Well made. Remember you have to buy the timer gizzmo separately.
Date published: 2022-04-18
Rated 5 out of 5 by from Bathroom extractor fan Original 15year old fan died, Toolstation were the cheapest / quickest / local company to supply a replacement. Quick swap / like-for-like replacement, excellent service.
Date published: 2022-04-17
Rated 5 out of 5 by from Icon 15 extractor Excellent humility control , quiet operation and easy installation.
Date published: 2022-03-07
Rated 5 out of 5 by from Toilet extract fan It is expensive but quite and long lasting as this was a like for like replacement after the initial 21 year fan failed.
Date published: 2021-12-28
Rated 5 out of 5 by from Like these fans Used for over 10 years and now installing in another house
Date published: 2021-11-14
Rated 4 out of 5 by from Airflow Fan A replacement for the 8 year old Airflow, fittings same as the old one, so no problems.
Date published: 2021-10-25
