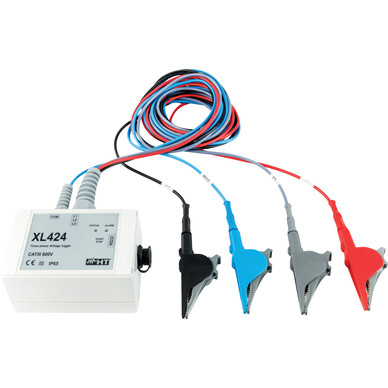

3 Phase Voltage Logger

• AC TRMS three-phase voltage measurement
• Measuring range: 0 ÷ 600VAC
• Accuracy: ±(1.0%reading+1 digit)
• Resolution: 0.1V
• Operating frequency: 50±6Hz, 60±6Hz
• Bandwidth: 3200Hz
• Sampling frequency: 64 spots in 20ms
• Integration period: 1s, 6s, 30s, 60s, 5min
• Memory capacity: 1Mbyte
• Serial interface: RS-232
• Front panel indication: LED diodes
• Power supply: 2x1.5V batteries type AA LR6
• Battery life: >6months (with loaded batteries)
• Safety: IEC/EN 61010-1
• Measurement category: CAT IV 600V (to earth)
• Insulation: Double insulation
• Pollution level: 2
• Mechanical protection index: IP65
• Max height: 2000m
• Size (LxWxH): 120x80x43 mm
• Weight (batteries included): approx. 0.5kg
