Vent-Axia 100mm Solo Plus Extractor Fan Humidistat & Timer
by Vent Axia Product Code: 76770 76770
Pack size: Each
(6)
£154.49
ex. VAT £128.74
Pack size: Each
19 Available for delivery. Please see our updated delivery times for the Bank Holiday weekend below.
May Bank Holiday 2024 Opening and Delivery Times
Product Details

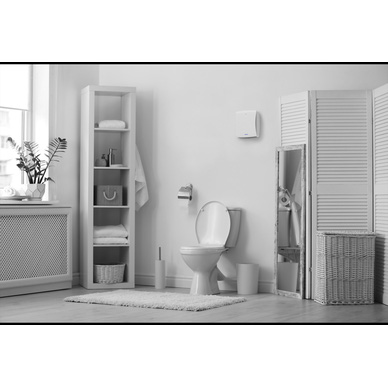

Improve bathroom ventilation with the Solo Plus extractor fan from Vent-Axia. The 100mm fan is specially designed for through-the-wall and ducted installations – perfect for bathrooms, toilets and other small rooms.
The Solo Plus can be surface-mounted and is suitable for a variety of installations – a 100mm circular spigot allows for rear entry or connecting to a vertical ducting system. The spigot can also be adjusted for sideways exhaust, enabling recessed ceiling installations within limited ceiling voids.
A powerful centrifugal impeller allows for installations with longer duct runs using 100mm ducting, while still achieving the 15L/s required to meet Building Regulation Document F. This Solo Plus humidistat/timer model also has a choice of two boost/override motor speeds set at installation – choose from medium (17L/s) or high (22L/s), with an optional constant trickle speed (9L/s) also selectable at installation.
• 100mm extractor fan with humidistat and overrun timer
• 2266 rpm motor with a 66m³/hr extraction rate
• Quiet operation – noise level of 34.5dB(A)
• Suitable for ceiling, panel or wall mounting – use wall kit 83154
• Innovative impeller design – no need for a filter
• Surface-mountable for a smart fit
• Adjustable rear or side exit spigot for flexible installation
• Choice of two motor speeds selectable at installation
• IPX4 rating for use in bathrooms or toilets
• Meets requirements of Building Regulation Documents F and L
The Solo Plus can be surface-mounted and is suitable for a variety of installations – a 100mm circular spigot allows for rear entry or connecting to a vertical ducting system. The spigot can also be adjusted for sideways exhaust, enabling recessed ceiling installations within limited ceiling voids.
A powerful centrifugal impeller allows for installations with longer duct runs using 100mm ducting, while still achieving the 15L/s required to meet Building Regulation Document F. This Solo Plus humidistat/timer model also has a choice of two boost/override motor speeds set at installation – choose from medium (17L/s) or high (22L/s), with an optional constant trickle speed (9L/s) also selectable at installation.
• 100mm extractor fan with humidistat and overrun timer
• 2266 rpm motor with a 66m³/hr extraction rate
• Quiet operation – noise level of 34.5dB(A)
• Suitable for ceiling, panel or wall mounting – use wall kit 83154
• Innovative impeller design – no need for a filter
• Surface-mountable for a smart fit
• Adjustable rear or side exit spigot for flexible installation
• Choice of two motor speeds selectable at installation
• IPX4 rating for use in bathrooms or toilets
• Meets requirements of Building Regulation Documents F and L
