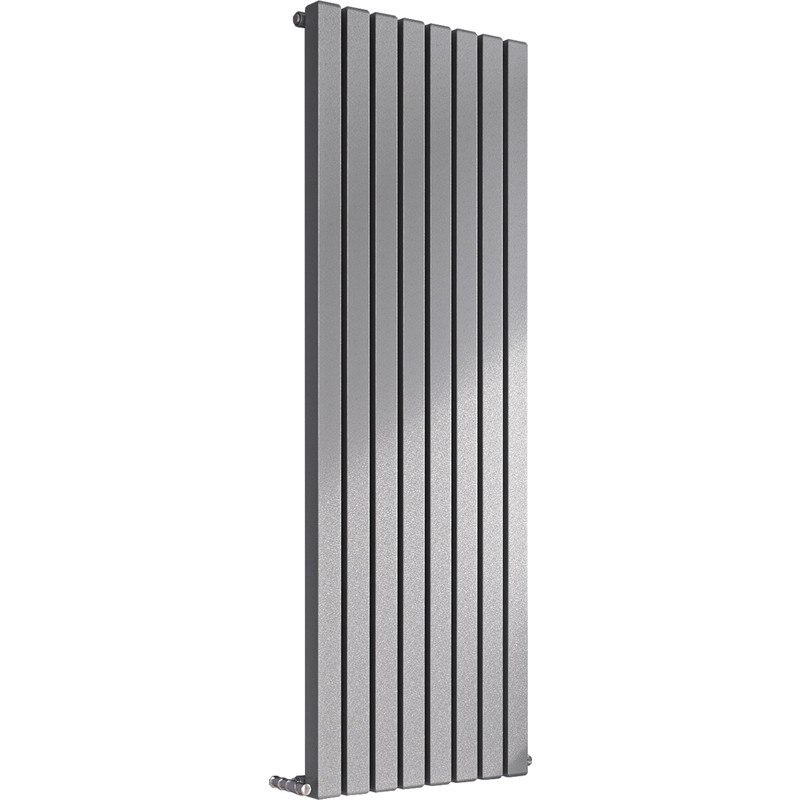

Ximax Buckingham Square Tube Designer Radiator 1800 x 585mm 6198Btu Silver

By Ximax Product code: 12477 Pack size: Each

Click here for full description

Delivery only

£626.98 Exc. VAT £522.48

Selected

Quantity

Select from 4 variations

Delivery

Product Details

Square 60 x 60mm designer radiator with an efficient tube-in-tube system. High performance and maximum output. Suitable for hot water central heating systems.

• Steel construction with high quality pre-treatment and powder-coated finish (white, silver or anthracite)
• Easy to install
• Wall fixings, plug & vent included
• Connection size: 1/2"
• Heat output calculated at Delta T50
• Pressure tested to 13 bar, max working pressure 10 bar
• Max. working temperature : 120°C
• Projection from wall: 125mm. Wall to centre: 41mm
• Manufactured and tested to EN-442
• 10 year manufacturer's guarantee (T&Cs apply)

Dimensions are height by width.

Technical Specification

Brand	Ximax
Colour	Silver
Width (mm)	585
Height (mm)	1800
Material	Steel
Manufacturer ID	TVS1800585S
BTU	6198
Width (mm)	585
Warranty (years)	10
Certification	Manufactured and tested to EN-442
Depth (mm)	90
Min Pressure (bar)	0.5
Max Pressure (bar)	4
Finish	Gloss
Weight (kg)	78.25
User Guide	click here
Pack Contents	Radiator, fixings, blank and air plug
Pipe Centres (mm)	585mm
Fitted Depth (mm)	125
BTU Range	6001-8000
Inlet Connection	1/2"
Max. Hot Water Temp	120°C
Range Name	Devon Square
Coating	Powder Coated
Delta T	50
Suitable Systems	Central Heating
Radiator Profile	Single
Number of Sections	8
Radiator Orientation	Vertical
Radiator Style	Square Tube-in-Tube

Reviews

Ximax Buckingham Square Tube Designer Radiator 1800 x 585mm 6198Btu Silver is rated 4.0 out of 5 by 1.

Rated 4 out of 5 by Andy390 from Nice stylish and solid radiator This is a very heavy unit and requires two people to lift onto the brackets , however is very nicely made, seems to work really well . as suggested the convection gives off plenty of heat through the hollow tubes. overall very pleased with it

Date published: 2021-12-30
